| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
156 pcs
|
156 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Flammability Rating | |
| Flange Feature | |
| Industrial Grade | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Performance Level | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Wire Gauge |

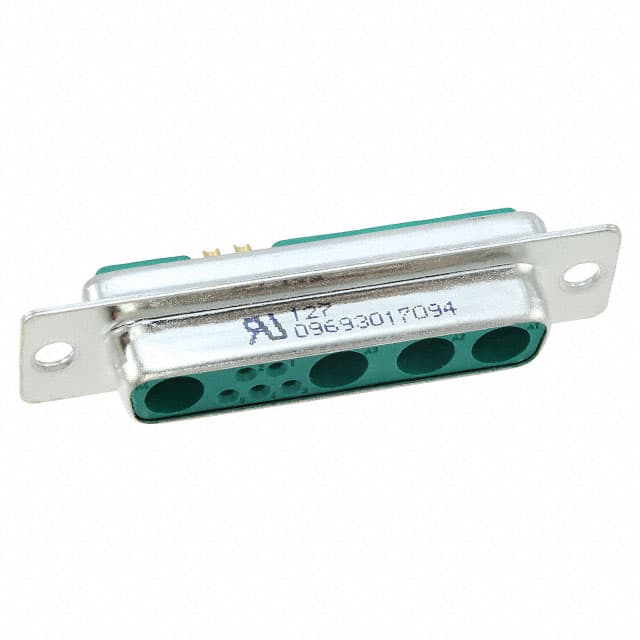

The Harting 09693017094 is a D-Sub Combo receptacle connector designed for applications requiring mixed signal and coax or power contacts. It features a 9-position layout with 5 signal contacts and 4 coax or power positions, housed in a steel shell with tin plating. The connector uses solder cup termination suitable for AWG 20 (0.5 mm²) wire and is rated for 5A current per contact.
This free hanging (in-line) receptacle has a shell size of 3 (DB, B) - 9W4 and includes an unthreaded housing/shell flange feature. The insulator material meets UL94 V-0 flammability requirements. Performance level 3 per DIN 41 652 ensures reliable operation in industrial environments.
The connector is designed for use with separately ordered signal and coax/power contacts, offering flexibility in custom cable assembly configurations. Its robust steel shell provides durability and EMI shielding in demanding applications.
Free hanging (in-line) mounting.
9 positions total: 5 signal and 4 coax or power.
5 A per contact.
Solder cup termination for AWG 20 (0.5 mm²) wire.
UL94 V-0.
