| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
106 pcs
|
106 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

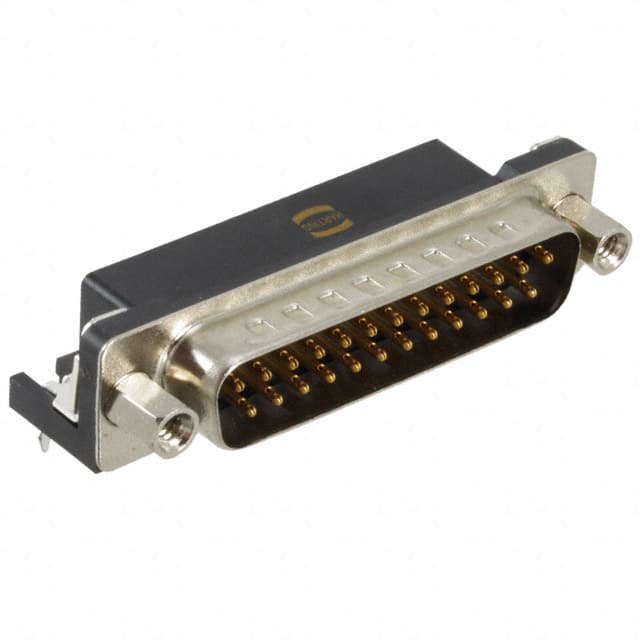

The Harting 09683637813 is a 25-position D-Sub plug connector with male pins, designed for through hole right angle mounting. It features solder termination and a steel shell with female screwlocks (4-40) on the mating side. The connector has a shell size of DB B and includes board lock and grounding indents for secure attachment and enhanced grounding.
Electrically, it is rated for a current of 6.5A per contact and is intended for signal use. The insulator material has a UL94 V-0 flammability rating, ensuring safety in various applications. The backset spacing is 8.08mm, suitable for standard PCB layouts.
The connector is RoHS3 compliant and REACH unaffected, though these compliance claims are unverified. With its right angle orientation, it is ideal for space-constrained designs requiring a low-profile interconnect solution.
25 positions.
6.5 A per contact.
Through Hole, Right Angle.
Solder.
Steel.
Yes, features include Board Lock and Grounding Indents.
UL94 V-0.
