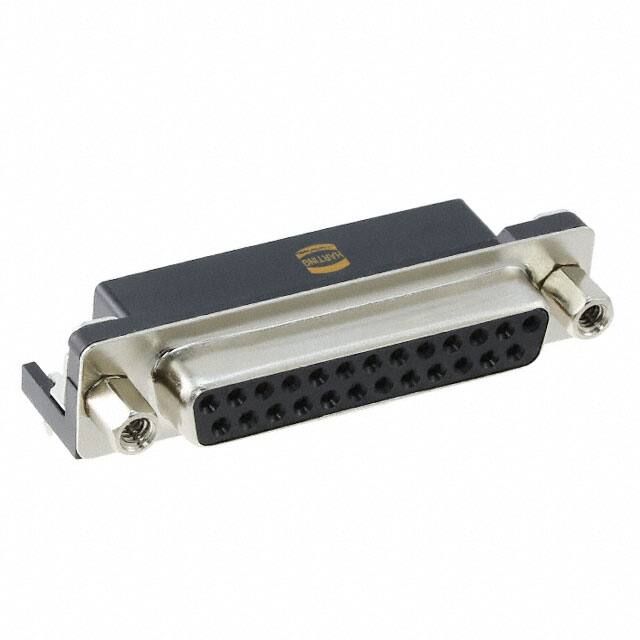

The Harting 09683535613 is a D-Sub receptacle connector with 25 female socket contacts arranged in 2 rows. It features a shell size of 3 (DB, B) and a steel shell. The connector is designed for through-hole, right angle mounting with solder termination, making it suitable for PCB applications where space constraints require a right angle orientation.
Electrical specifications include a current rating of 6.5 A per contact. The contacts are signal type with a gold or gold-palladium finish of 0.76 µm thickness. The connector includes a board lock feature for secure attachment to the PCB and a flange feature with mating side female screwlock (4-40) for reliable mating.
The insulator material has a flammability rating of UL94 V-0. The backset spacing is 8.08 mm. This connector is part of Harting's D-Sub series designed for industrial and commercial applications requiring robust and reliable interconnections.
Receptacle, Female Sockets; D-Sub style.
25 positions arranged in 2 rows.
Through Hole, Right Angle mounting with Solder termination.
6.5 A per contact.
Gold or Gold-Palladium with 0.76 µm thickness.
Yes, it includes a board lock.
Steel.
