| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
64 pcs
|
64 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

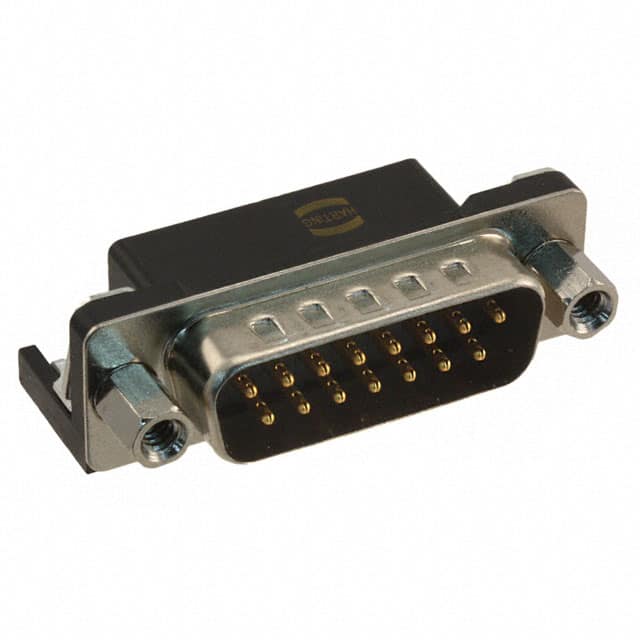

The Harting 09682637813 is a D-Sub connector assembly featuring a plug with male pins in a 15-position, 2-row configuration. It uses shell size 2 (DA, A) and is designed for through-hole right angle mounting with solder termination.
This connector is rated for 6.5A per contact and has a steel shell. It includes board lock and grounding indent features for secure attachment and improved EMI performance. The flange feature is a mating side female screwlock (4-40).
The insulator material has a UL94 V-0 flammability rating. The backset spacing is 0.318" (8.08mm). This connector is suitable for signal contact applications in industrial and commercial electronic systems.
It is a D-Sub plug with male pins.
It has 15 positions arranged in 2 rows.
Through hole, right angle mounting with solder termination.
6.5A per contact.
Steel shell with UL94 V-0 rated insulator.
