| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Tape & Reel | |
| Termination |

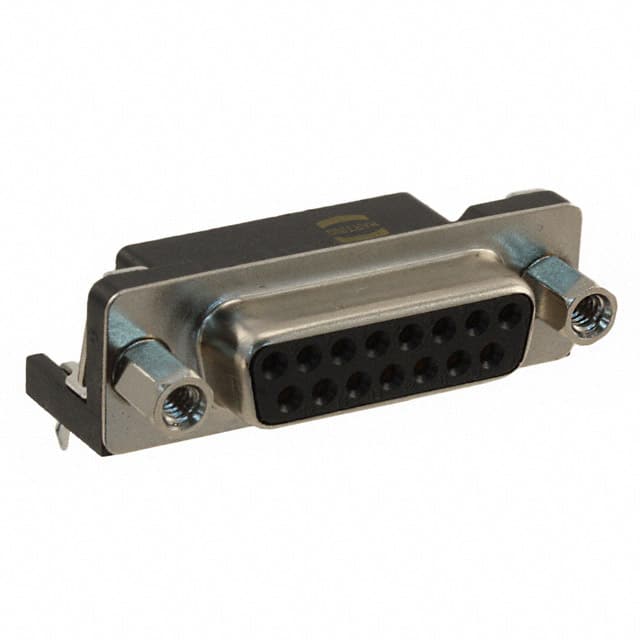

The Harting 09682537613 is a 15-position D-Sub receptacle (female sockets) designed for signal applications. It features a right-angle through-hole mounting style with solder termination, making it suitable for compact PCB layouts where space is limited. The connector uses a steel shell and has a shell size of 2 (DA, A). It includes a board lock for secure attachment and a mating side female screwlock (4-40) for reliable connection. The backset spacing is 0.318" (8.08mm). Electrically, it is rated for 6.5A continuous current. The insulator material has a UL94 V-0 flammability rating, ensuring fire resistance. This connector is commonly used in data communication, industrial control, and computer I/O applications where a robust and reliable interconnection is required. Its right-angle design allows for efficient PCB space utilization.
15 positions.
6.5A.
Through Hole, Right Angle.
Steel.
Yes, it includes a board lock feature.
UL94 V-0.
2 (DA, A).
