| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
116 pcs
|
116 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Board Lock | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

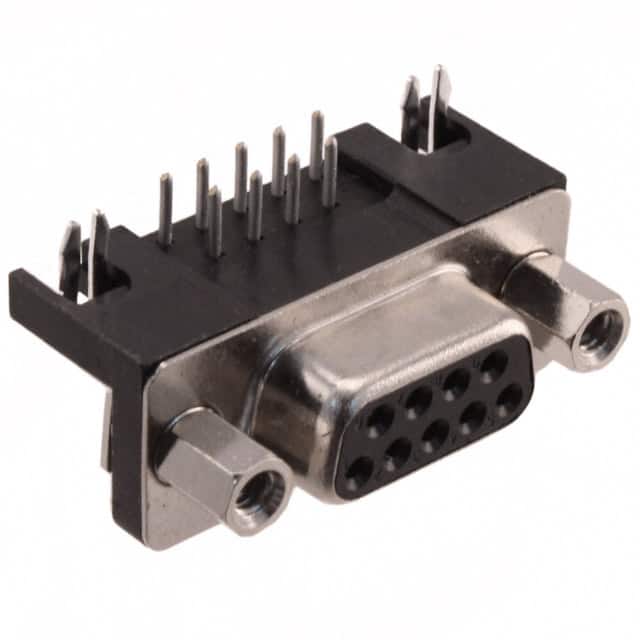

The 09681537613 is a D-Sub receptacle connector from Harting. It features 9 positions arranged in 2 rows, with female socket contacts. The connector uses a right angle solder termination and through hole mounting, making it suitable for PCB applications where space is limited.
This connector is rated for a current of 6.5A per contact. The shell is made of steel and the insulator material has a flammability rating of UL94 V-0. It includes a board lock feature for secure attachment to the PCB. The flange features a mating side female screwlock (4-40) for reliable mating.
The D-Sub connector style is widely used in data and signal transmission applications. The right angle orientation allows for low-profile connections parallel to the board. The through hole mounting provides robust mechanical attachment.
9 positions.
6.5A per contact.
Through Hole, Right Angle.
Steel.
Yes.
UL94 V-0.
Mating Side, Female Screwlock (4-40).
