| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
226 pcs
|
226 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Ingress Protection | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

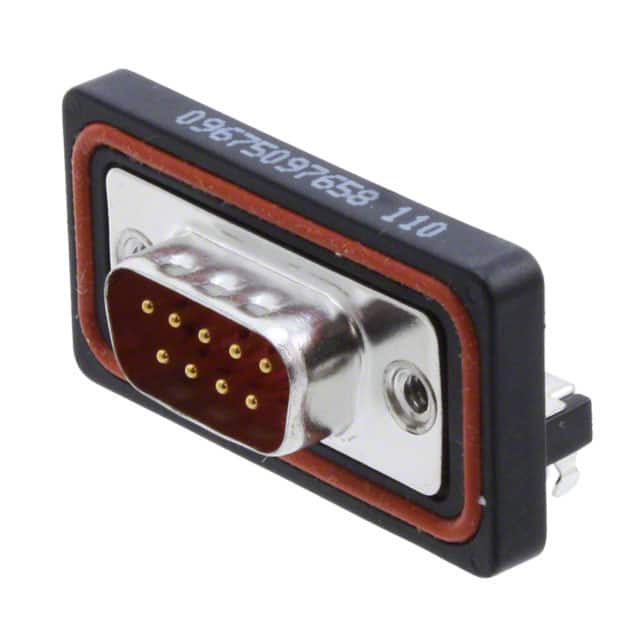

This is a D-Sub plug connector from Harting, part number 09675097658. It has 9 positions arranged in 2 rows, with male pin contacts. The connector uses a DE (E) shell size.
The connector is designed for panel mount and through-hole mounting with a right-angle orientation. Termination is via solder. The contacts have a gold or gold-palladium finish with 30.0µin thickness. The shell is made of brass with tin plating. Features include board lock, grounding indents, and mounting brackets.
The connector is rated for 5A current. It has an IP67 rating for dust-tight and waterproof protection. The material flammability rating is UL94 V-0. The backset spacing is 0.228" (5.80mm). The flange feature is housing/shell with 4-40 thread.
This connector is suitable for applications requiring a robust, sealed connection. The right-angle design allows for space-saving PCB layouts. The IP67 rating makes it suitable for harsh environments.
9 positions.
5A.
Panel mount and through-hole, right angle.
Yes, it has IP67 ingress protection (dust-tight and waterproof).
Brass with tin plating.
Gold or gold-palladium with 30.0µin thickness.
UL94 V-0.
