| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Ingress Protection | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

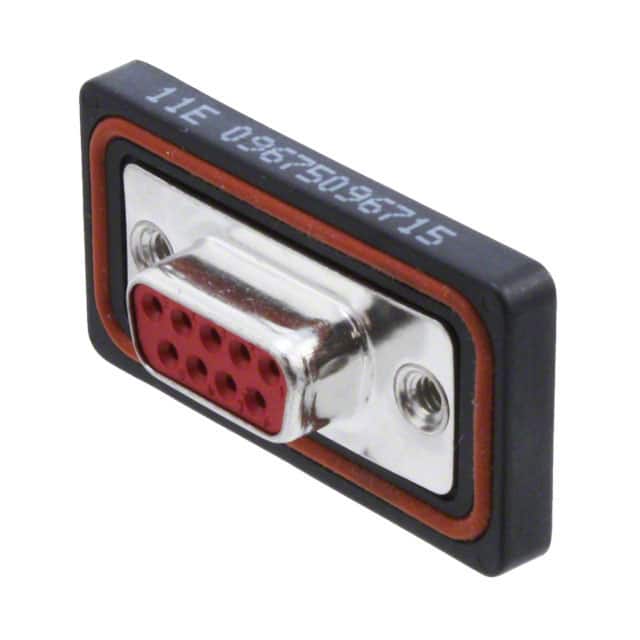

The Harting 09675096715 is a 9-position D-Sub receptacle connector designed for reliable connectivity in harsh environments. It features female sockets with gold or gold-palladium plating for corrosion resistance and reliable signal transfer. The connector supports panel mounting and uses solder cup termination for secure wire connections.
With a current rating of 5A per contact and an IP67 rating for dust-tight and waterproof operation, this connector is suitable for industrial automation, outdoor equipment, and marine applications. The shell is made of brass with tin plating, providing durability and EMI shielding. The connector layout is DE-9 (E shell size) with a 4-40 threaded flange for secure mating.
The insulator material meets UL94 V-0 flammability rating, ensuring safety in high-temperature environments. The contact finish thickness is 30.0µin (0.76µm), offering long-lasting performance. This connector is RoHS3 compliant and REACH unaffected, though compliance data is unverified.
9 positions arranged in 2 rows.
5 Amps per contact.
Panel Mount with a flange feature using 4-40 threaded holes.
Yes, it has an IP67 rating for dust-tight and waterproof protection.
Solder cup termination.
Gold or Gold-Palladium with a thickness of 30.0 microinches (0.76 micrometers).
