| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Gender | |
| Contact Type | |
| Flange Feature | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Plating | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Termination Style |

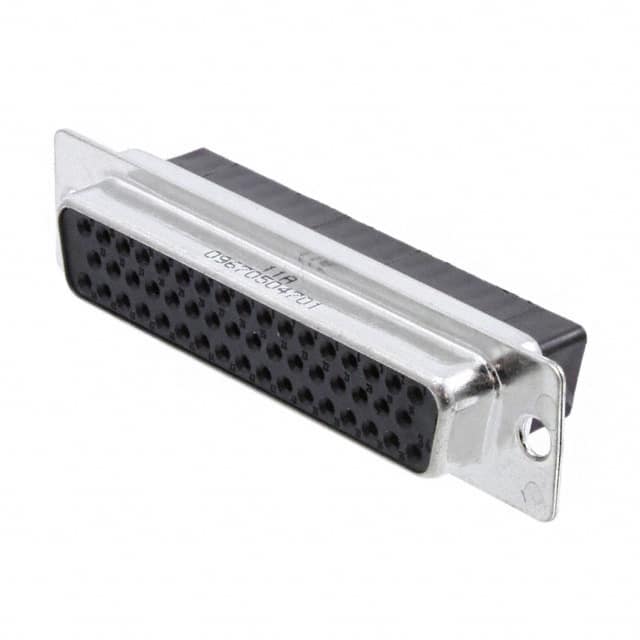

The Harting 09670504701 is a D-Sub receptacle housing designed for use with 50 female crimp contacts (sold separately). It features a 3-row layout and a steel shell with tin plating, providing robust shielding and durability for industrial and commercial applications. The housing is panel mount with an unthreaded housing/shell flange for secure installation. Termination is via crimp contacts, ordered separately, allowing flexible wire assembly. The shell size is 5 (DD, D). This housing is part of the 09 67 series and complies with DIN 41652 and CECC 75 301-802 standards.
The housing has 50 positions arranged in 3 rows.
The housing is panel mount with an unthreaded housing/shell flange.
It supports crimp termination. Contacts are ordered separately.
The shell is steel with tin plating.
This is a receptacle for female contacts (female connector).
