| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accessory Type | |
| Ambient Temperature | |
| Cable Diameter | |
| Cable Exit | |
| Cable Type | |
| Country of Origin | |
| Features | |
| Hardware | |
| Height | |
| Length | |
| Material | |
| Number of Positions | |
| Width |

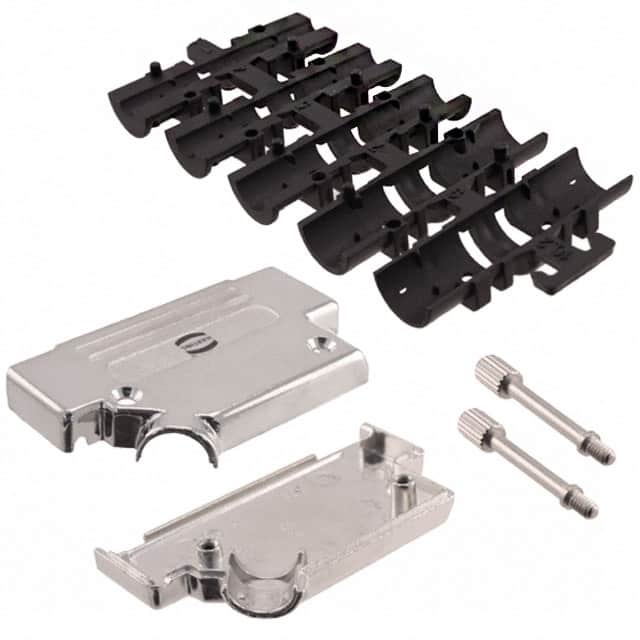

The Harting 09670370333 is a D-Sub shell housing designed for 37 position connectors. It features a side entry configuration with a single cable entry suitable for round cables with diameters from 4 to 10.2 mm. The housing is made of metal and includes a separable cable grommet in two parts for secure cable fixation.
Locking is achieved via knurled screws with 4-40 UNC thread, tightened to 0.4 Nm. The cover is screw-on type and assembly hardware along with grommets are included in the package. The housing measures 41.8 mm in length, 69.8 mm in width, and 15.5 mm in height.
The part is rated for an ambient temperature range of -40 to +120 °C. It is RoHS compliant with exemption, contains SVHC lead, and is compliant with ELV and California Proposition 65 requirements.
37 positions.
Side entry with one cable entry for round cable.
4 to 10.2 mm.
-40 to +120 °C.
Knurled screw with 4-40 UNC thread.
Yes, RoHS compliant with exemption 6(a)-I.
