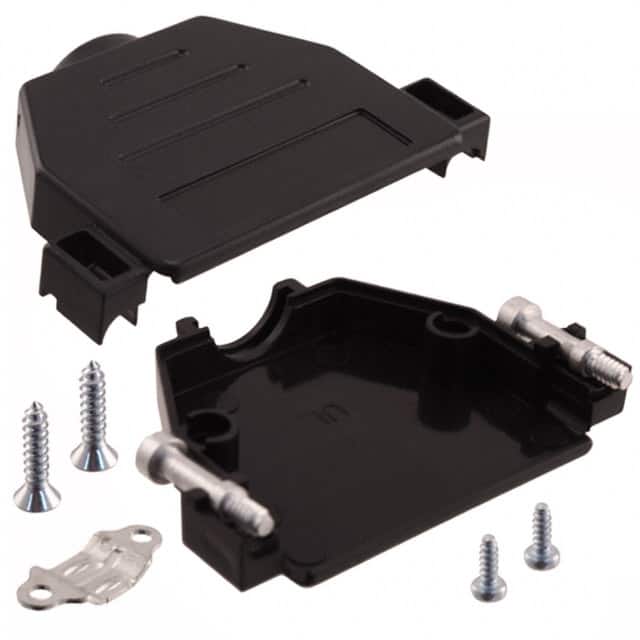

09670250442 Harting 09670250442 is a two-piece D-Sub backshell for 25 positions with a 180° cable exit. It is made of black thermoplastic and includes mating screws 4-40 and assembly hardware with strain relief.
Mfr Part #:

09670250442

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09670250442 is a two-piece D-Sub backshell for 25 positions with a 180° cable exit. It is made of black thermoplastic and includes mating screws 4-40 and assembly hardware with strain relief.
✓ Total Stock: 4 pcs

09670250442 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09670250442 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accessory Type
Cable Exit
Cable Type
Color
Features
Hardware
Material
Mounting Type
Number of Positions
Package / Case
View Similar Products (0)

09670250442 Description

Short technical summary and product information.

The Harting 09670250442 is a two-piece D-Sub backshell designed for 25-position connectors. It features a 180° cable exit and is constructed from black thermoplastic, providing a durable and lightweight housing for cable termination.



This backshell includes mating screws 4-40 and assembly hardware with strain relief, ensuring secure cable management and reliable connection integrity. It is intended for free hanging (in-line) mounting, making it suitable for cable assembly applications where a robust backshell is required.



Typical applications include industrial connectivity, data communication, and instrumentation where D-Sub connectors are used. The thermoplastic material offers good insulation and mechanical protection for the connector and cable junction.

09670250442 Quick Information

Product Type: D-Sub Backshell
Canonical Name: Harting 09670250442 D-Sub Backshell, Two Piece, 25 Position, 180° Cable Exit, Thermoplastic, Black
Subcategory: D-Sub Backshell

09670250442 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

09670250442 Features

  • Two-piece D-Sub backshell for 25 positions.
  • 180° cable exit for straight cable routing.
  • Black thermoplastic construction for durability.
  • Includes 4-40 mating screws and strain relief.
  • Free hanging (in-line) mounting style.

09670250442 Applications

  • Cable assembly for D-Sub connectors.
  • Industrial control and automation systems.
  • Data communication equipment backshells.
  • Instrumentation and measurement devices.

09670250442 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does this backshell support?

This backshell supports 25 positions.

What is the cable exit angle?

The cable exit angle is 180° (straight).

What material is the backshell made of?

The backshell is made of black thermoplastic.

What hardware is included with this backshell?

It includes assembly hardware, strain relief, and mating screws 4-40.

What type of cable does this backshell accommodate?

It accommodates round cable.
