| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
36 pcs
|
36 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Contact Type | |
| Features | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination Style |

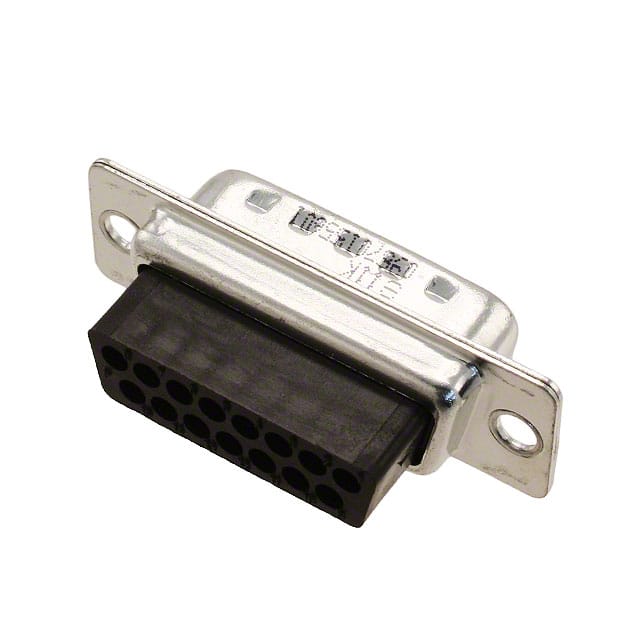

The Harting 09670155601 is a D-Sub connector housing designed for use with male crimp contacts. It has 15 positions arranged in 2 rows and uses shell size 2 (DA, A). The housing is constructed with a steel shell that has a tin-plated finish and includes grounding indents for improved electrical performance.
This connector housing is designed for panel mount installation. The panel cut out dimensions are 39.2 mm in length and 33.3 mm in width. The flange feature is housing/shell unthreaded. The housing accepts crimp-style contacts which are ordered separately.
This part is RoHS3 compliant and has an MSL of 1 (unlimited). It is also REACH unaffected. The housing is suitable for applications requiring a reliable D-Sub connection in a panel-mount configuration.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.27 | $2.27 |
| 10+ | $1.96 | $1.96 |
| 25+ | $1.82 | $1.82 |
| 100+ | $1.72 | $1.72 |
| 300+ | $1.59 | $1.59 |
| 500+ | $1.49 | $1.49 |
| 1,000+ | $1.32 | $1.32 |
| 2,500+ | $1.24 | $1.24 |
| 5,000+ | $1.18 | $1.18 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This D-Sub housing has 15 positions.
The shell size is 2 (DA, A).
This housing accepts crimp-style contacts.
The mounting type is panel mount.
The shell is steel with a tin-plated finish.
