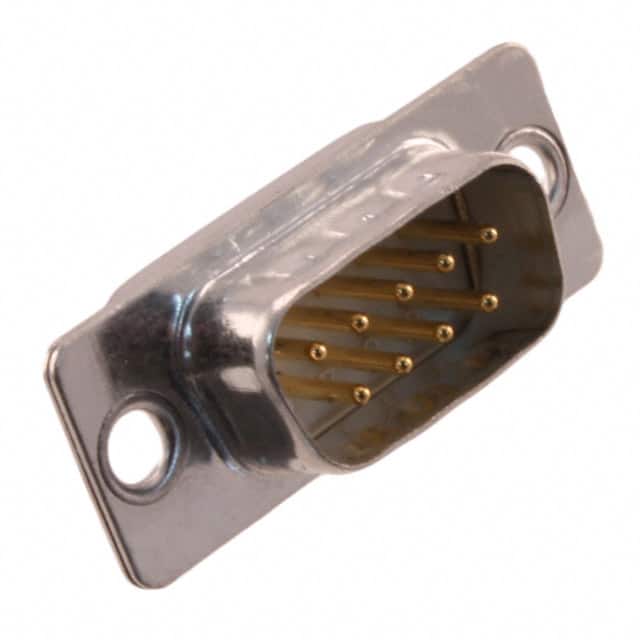

09670095604

The HARTING 09670095604 is a standard D-Sub plug connector with 9 positions arranged in 2 rows. It features male pins with a solder cup termination, designed for free hanging (in-line) mounting. The connector is rated for a current of 7.5 A and has a limiting temperature range of -55 to +125 °C. Key electrical characteristics include a contact resistance of ≤10 mΩ, insulation resistance >10¹⁰ Ω, and a test voltage of 1 kV. The clearance and creepage distances are ≥1 mm, and the isolation group is IIIa (CTI 175-400). The connector supports up to 50 mating cycles with an insertion force ≤30 N and withdrawal force between 3.3 N and 20 N. It is not hot-pluggable. The shell is made of steel with a tin plating, and the insert is glass-fibre filled PBTP thermoplastic in white. Contacts are copper alloy with noble metal over nickel plating. The locking mechanism uses a fixing flange with a feed-through hole of Ø3.1 mm. The connector is suitable for PCB-to-cable and cable-to-cable connections. It complies with UL94 V-0 flammability, RoHS (with lead exemption 6(c)), REACH (SVHC lead), California Proposition 65, China RoHS, ELV, and SCIP. It also meets EN 45545-2 fire protection requirements for railway vehicles (hazard levels R26). The conductor cross-section is 0.5 mm² (AWG 20) with a stripping length of 2.5-3 mm.
