| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,800 pcs
|
4800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
63 pcs
|
63 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Termination Style | |
| Contact Type | |
| Failure Rate | |
| Features | |
| Flange Feature | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Panel Cutout Dimensions | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Standards | |
| Storage Temperature | |
| Termination Style |

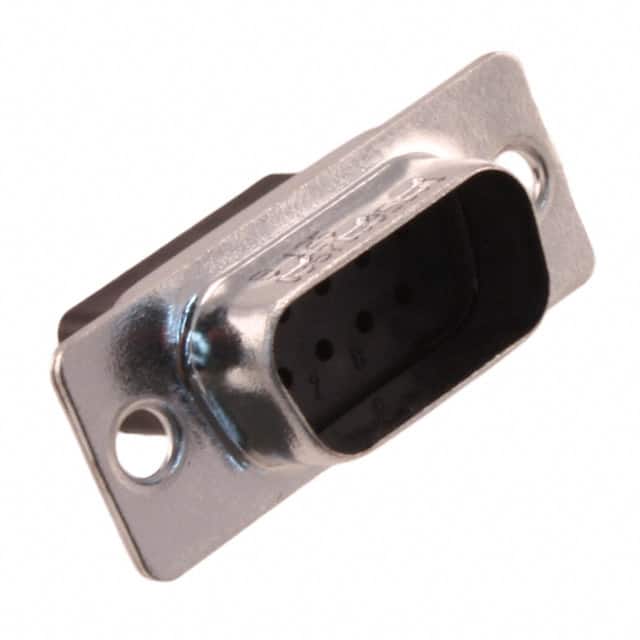

This is a D-Sub connector housing from Harting, part of the DIN 41652 series. It is a plug for male contacts with 9 positions arranged in 2 rows. The housing is designed for signal contacts and features a panel mount configuration.
The shell is made of steel with tin plating and includes grounding indents for improved EMI performance. The flange feature is housing/shell unthreaded. The connector layout is shell size 1 (DE, E). Panel cutout dimensions are a=30.9mm, b=25.0mm, c=12.5mm per CECC 75 301-802 standards.
Termination is via crimp contacts (sold separately). This housing is suitable for applications requiring reliable signal connections in industrial or data communication environments. The housing is RoHS3 compliant (unverified) and has MSL 1 unlimited.
9 positions arranged in 2 rows.
Panel mount with an unthreaded flange.
Steel with tin plating.
Crimp termination; contacts are sold separately.
DIN 41652 and CECC 75 301-802.
Male (plug for male contacts).
Yes, grounding indents are included.
