| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
64 pcs
|
64 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Flange Feature | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout |

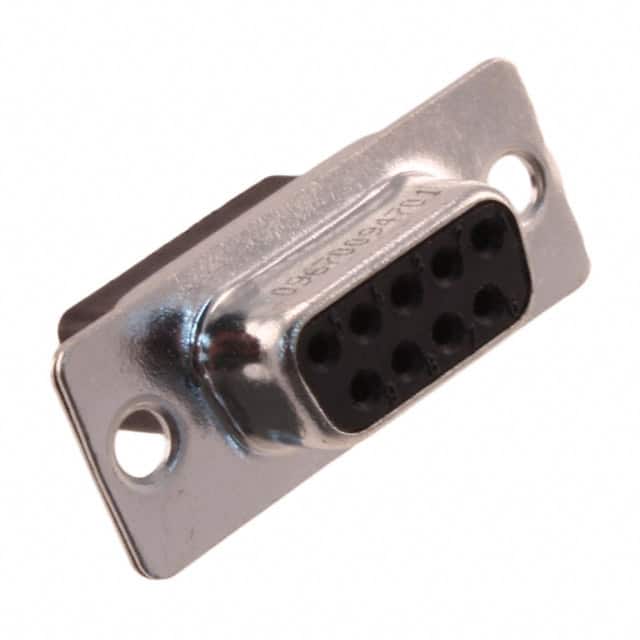

The Harting 09670094701 is a D-Sub receptacle housing designed for use with female contacts. It features 9 positions arranged in 2 rows, conforming to shell size DE-9 (E).
The housing is panel mount with an unthreaded housing/shell flange for secure installation. The shell is constructed from steel with tin plating, providing durability and good conductivity.
This housing supports signal contact types and is part of the standard D-Sub connector family. It is RoHS3 and REACH compliant, with an MSL rating of 1. The connector layout follows the industry-standard DE-9 form factor.
9 positions.
Panel mount.
2 rows.
DE-9 (E).
Receptacle for female contacts.
Housing/Shell (Unthreaded).
Steel with tin plating.
