09665526616 Harting D-Sub receptacle with 50 female contacts, right angle through hole solder termination, and board locks. Rated 6.5 A.
Mfr Part #:

09665526616

Available from 1 distributors
Mfr Name: Harting
Harting
Harting D-Sub receptacle with 50 female contacts, right angle through hole solder termination, and board locks. Rated 6.5 A.
✓ Total Stock: 2 pcs

09665526616 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09665526616 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Backset Spacing
Connector Style
Connector Type
Contact Resistance
Contact Type
Current Rating (Amps)
Features
Flange Feature
Gender
Industrial Grade
Insulation Resistance
Lead Style
Material Flammability Rating
Mating Cycles
Medical Grade
Mounting Type
Number of Positions
Number of Rows
Prop 65
SVHC Present
Shell Material, Finish
Shell Size, Connector Layout
Termination
Termination Method
Termination Style
View Similar Products (0)

09665526616 Description

Short technical summary and product information.

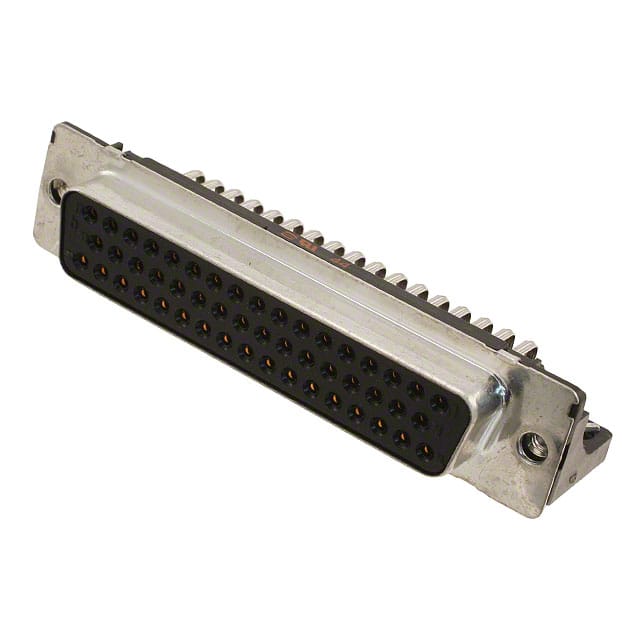

The Harting 09665526616 is a standard D-Sub receptacle connector with 50 female signal contacts arranged in 3 rows. It features a through hole, right angle mounting style with solder termination, making it suitable for wave soldering processes.



Electrical characteristics include a current rating of 6.5 A per contact, insulation resistance greater than 10¹⁰ Ω, and contact resistance of 10 mΩ or less. The connector is rated for a test voltage of 1 kV and operates over a temperature range of -55 to +125 °C.



Mechanically, the connector uses a steel shell with a 4-40 UNC threaded locking flange and includes integrated board locks for secure PCB attachment. The insert is molded from glass-fibre reinforced PBTP thermoplastic (UL94 V-0). Contacts are copper alloy with noble metal over nickel plating. The backset spacing is 0.409" (10.40 mm) and installation height is 6.2 mm.

09665526616 Quick Information

Product Type: D-Sub Connector Assembly
Series: Standard
Canonical Name: D-Sub Receptacle, Female Sockets, 50 Position, Through Hole Right Angle, Harting
Subcategory: Standard D-Sub, Low-Profile

09665526616 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Compliant
Lead Free: No

09665526616 Features

  • 50 signal contacts arranged in 3 rows.
  • Right angle through hole solder termination.
  • Rated current up to 6.5 A per contact.
  • 250 mating cycles minimum durability.
  • UL94 V-0 rated glass-filled PBTP insert.

09665526616 Applications

  • Motherboard to daughtercard board-to-board connections.
  • Industrial control and automation equipment.
  • Data communication and networking hardware.
  • Test and measurement instrumentation.

09665526616 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the mounting type of the Harting 09665526616?

Through hole, right angle with solder termination.

How many positions does this D-Sub connector have?

50 positions arranged in 3 rows.

What is the current rating of the 09665526616?

6.5 A per contact.

What is the operating temperature range?

-55 to +125 °C.

Does the connector include board locks?

Yes, it features board locks and a 4-40 UNC threaded locking flange.
