| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 1970-01-01 00:28:46 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Industrial Grade | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Performance Level | |
| Pitch | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

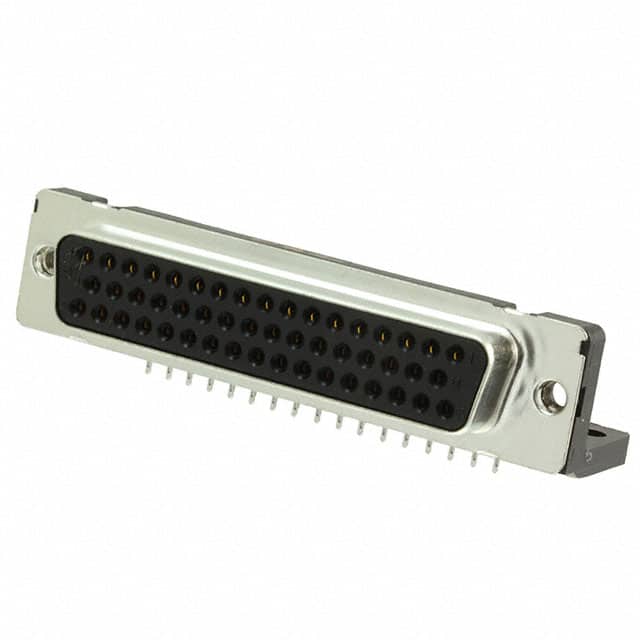

The Harting 09665127601 is a D-Sub receptacle connector from the DIN 41 652 series. It features 50 female socket contacts arranged in 3 rows with a 2.84 mm pitch. The connector is designed for through hole mounting with a right angle orientation and solder termination. The steel shell is size 5 (DD, D) and includes a flange feature with M3 thread. The backset spacing is 0.409 inches (10.40 mm). The connector is rated for a current of 6.5 A per contact and meets performance level 3. The insulation material has a UL94 V-0 flammability rating. This connector is suitable for applications requiring a high-density D-Sub interface with reliable signal transmission.
50 positions.
2.84 mm.
6.5 A per contact.
Through hole, right angle.
3 rows.
5 (DD, D).
RoHS3 compliant (unverified).
