| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Spacing | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

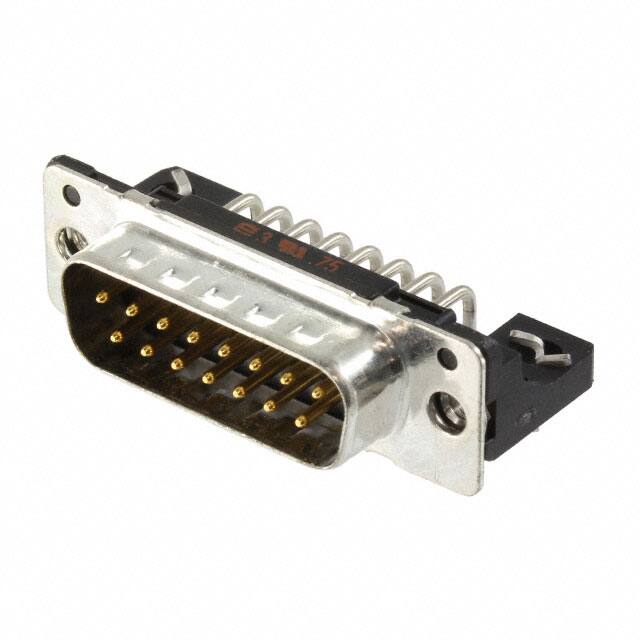

The Harting 09662627815 is a D-Sub connector plug with 15 male pins arranged in 2 rows. It features a right angle through hole mounting style with solder termination, making it suitable for compact PCB designs where space is limited. The connector is rated for a current of 7.5A per contact and has a shell size of 2 (DA, A). The steel shell provides durability and EMI shielding, with a flange feature for secure panel mounting using M3 hardware. The insulator is made from material rated UL94 V-0 for flammability resistance. Additional features include board locks for secure PCB retention and grounding indents for improved grounding reliability.
| Qty | Low | High |
|---|---|---|
| 100+ | $8.70 | $8.70 |
| 1,000+ | $8.38 | $8.38 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
15 positions.
7.5A per contact.
Through hole, right angle.
Solder termination.
Steel.
Board lock and grounding indents.
UL94 V-0.
