| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating (Amps) | |
| Flange Feature | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Termination |

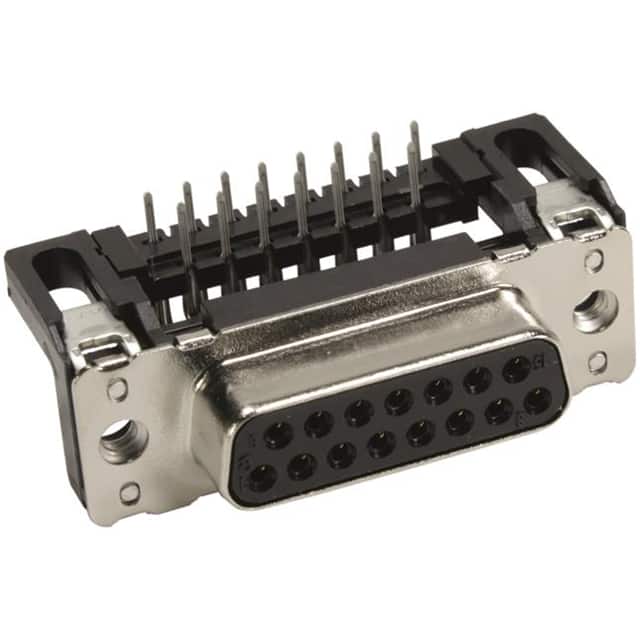

The Harting 09662137602 is a D-Sub connector assembly configured as a receptacle with female signal contacts. It features 15 positions arranged in 2 rows, with a shell size of 2 (DA, A). The connector is designed for through-hole, right-angle mounting and uses solder termination for secure connections.
The receptacle is housed in a steel shell with a housing/shell (4-40) flange feature. The backset spacing measures 10.40 mm (0.409 inches). It is rated for a current of 6.5 A per contact and meets UL94 V-0 flammability requirements for the insulating material. The connector is RoHS3 compliant, REACH unaffected, and has an MSL of Level 1 (unlimited).
This connector is suitable for applications requiring a reliable D-Sub interface with a compact right-angle footprint, commonly used in industrial, telecommunications, and data processing equipment.
Receptacle with female sockets (D-Sub style).
15 positions arranged in 2 rows.
Through-hole, right-angle mounting with solder termination.
6.5 A per contact.
Steel shell with housing/shell (4-40) flange.
UL94 V-0.
