| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination | |
| Termination Style |

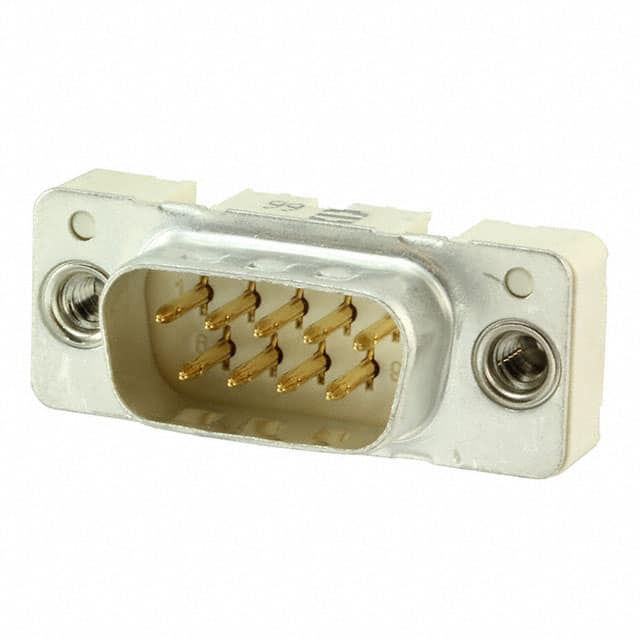

The Harting 09661646716 is a 9-position D-Sub plug connector designed for reliable signal interconnection in industrial and data communication applications. It features male pins arranged in 2 rows with a DE-1 shell size. The connector is rated for 6.5A continuous current per contact and utilizes press-fit termination for solderless PCB mounting, ensuring a robust mechanical and electrical connection.
The steel shell provides EMI shielding and durability, while the housing/shell flange with 4-40 threads allows secure mating. Additional features include board locks and grounding indents for enhanced stability and grounding. The insulator material meets UL94 V-0 flammability rating, suitable for environments requiring fire safety.
This connector is RoHS3 compliant and has an MSL of 1 (unlimited). It is ideal for use in control systems, data terminals, and other equipment requiring a compact, reliable D-Sub interface.
| Qty | Low | High |
|---|---|---|
| 1+ | $7.27 | $7.27 |
| 10+ | $6.18 | $6.18 |
| 20+ | $5.80 | $5.80 |
| 50+ | $5.52 | $5.52 |
| 100+ | $5.51 | $5.51 |
| 500+ | $5.35 | $5.35 |
| 1,000+ | $4.99 | $4.99 |
| 2,000+ | $4.86 | $4.86 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
6.5A.
Through hole.
Press-Fit.
Steel.
UL94 V-0.
Yes, board lock and grounding indents.
