| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

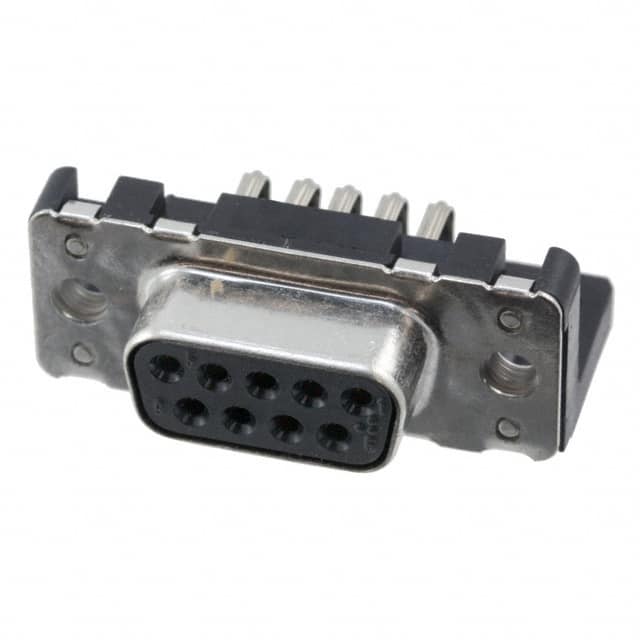

This Harting D-Sub receptacle (part number 09661527611) is a 9-position connector with female sockets arranged in 2 rows. It features a right angle through hole mounting style with solder termination, suitable for PCB applications where space is limited. The connector has a steel shell with a flange feature for secure mounting using M3 screws. It includes a board lock for additional retention. The current rating is 6.5A nominal. The housing material has a flammability rating of UL94 V-0. The backset spacing is 10.40mm. This connector is part of the D-Sub connector assemblies category, commonly used in data communication and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.67 | $5.67 |
| 10+ | $5.01 | $5.01 |
| 20+ | $4.80 | $4.80 |
| 100+ | $4.07 | $4.07 |
| 500+ | $3.80 | $3.80 |
| 1,000+ | $3.49 | $3.49 |
| 2,000+ | $3.42 | $3.42 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
9 positions.
6.5A nominal.
Through hole, right angle.
Shell size 1 (DE, E).
Yes, it includes a board lock.
UL94 V-0.
Solder.
