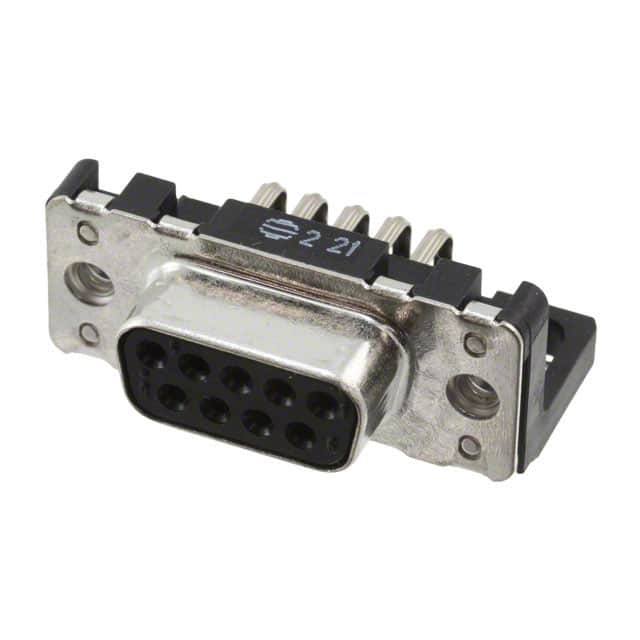

The Harting 09661526612 is a standard D-Sub receptacle connector designed for motherboard to daughtercard connections. It features 9 female contacts arranged in 2 rows with a contact spacing of 2.74 mm on the termination side and 2.54 mm between rows.
Electrical characteristics include a rated current of 6.5 A, contact resistance ≤10 mΩ, insulation resistance >10¹⁰ Ω, and a test voltage of 1 kV. The connector is rated for at least 250 mating cycles and has an insertion force of ≤30 N.
The connector is through hole mounted with a right angle orientation and wave soldering termination. It includes board locks for secure PCB fixing and a fixing flange with 4-40 UNC thread for locking. The shell is plated steel, the insert is glass-fibre filled thermoplastic (PBTP), and the contacts are copper alloy with noble metal over Ni plating. Operating temperature range is -55 to +125 °C.
This connector has 9 positions arranged in 2 rows.
The rated current is 6.5 A per contact.
It is through hole mounted with a right angle orientation and wave soldering termination.
The limiting temperature range is -55 °C to +125 °C.
Yes, it includes board locks for secure PCB attachment.
The insulation resistance is greater than 10¹⁰ Ω.
The contact resistance is ≤10 mΩ.
