| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

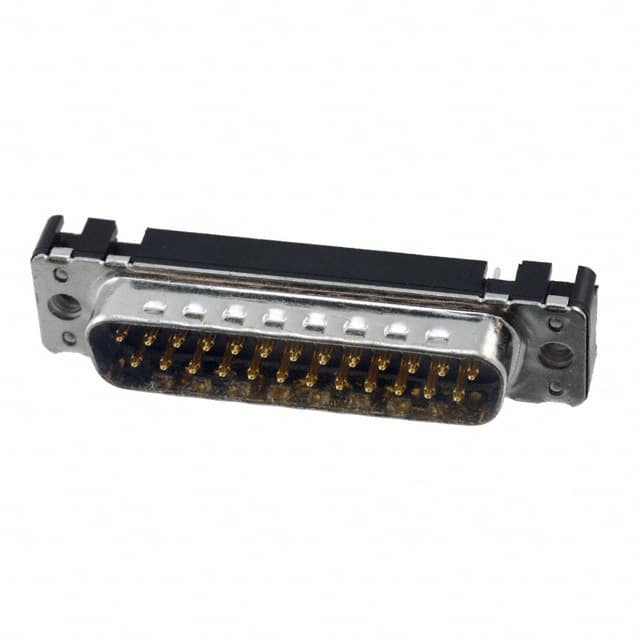

The Harting 09653616712 is a D-Sub plug connector designed for signal applications. It features 25 male pins arranged in 2 rows, with a DB-25 shell size (3, DB, B). The connector uses through hole mounting and solder termination for reliable PCB attachment.
The connector is rated for 6.5A per contact and has a steel shell with a housing/shell flange feature (4-40). It includes board lock and grounding indents for secure mounting and EMI protection. The insulator material has a UL94 V-0 flammability rating.
This connector is suitable for data communication, industrial control, and instrumentation applications requiring a standard 25-pin D-Sub interface. The male plug mates with standard DB-25 female connectors.
25 positions arranged in 2 rows.
6.5A per contact.
Through hole mounting with solder termination.
DB-25 (shell size 3, DB, B).
Board lock and grounding indents for secure mounting and EMI protection.
UL94 V-0.
