| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
45 pcs
|
45 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Termination | |
| Termination Style |

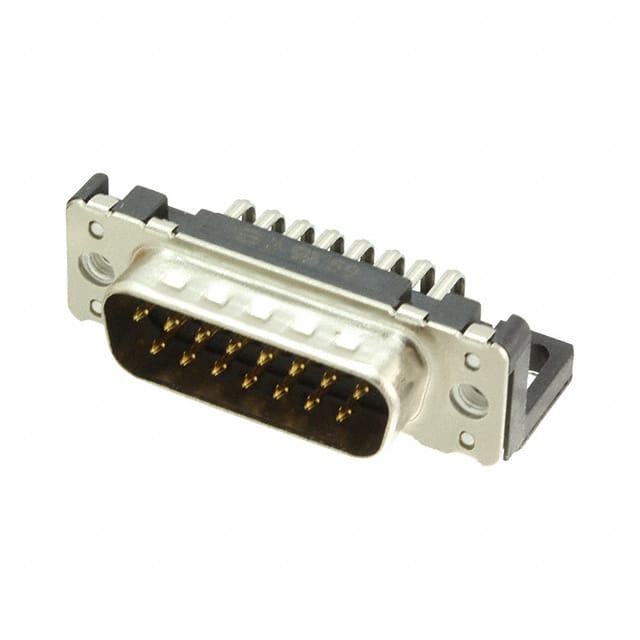

The Harting 09652627811 is a D-Sub plug connector featuring 15 male pin contacts arranged in 2 rows. It is designed for through hole right angle mounting with solder termination, making it suitable for PCB applications where space constraints require a right-angle orientation.
The connector has a steel shell with housing/shell flange feature (M3) and includes board lock and grounding indents for secure attachment and improved EMI performance. It is rated for a current of 6.5 A per contact and the insulator material meets UL94 V-0 flammability rating. The backset spacing is 0.409 inches (10.40 mm).
It has 15 positions (male pins) arranged in 2 rows.
Through hole, right angle with solder termination.
6.5 A per contact.
Steel.
Yes, it includes board lock and grounding indents.
