| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
98 pcs
|
98 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

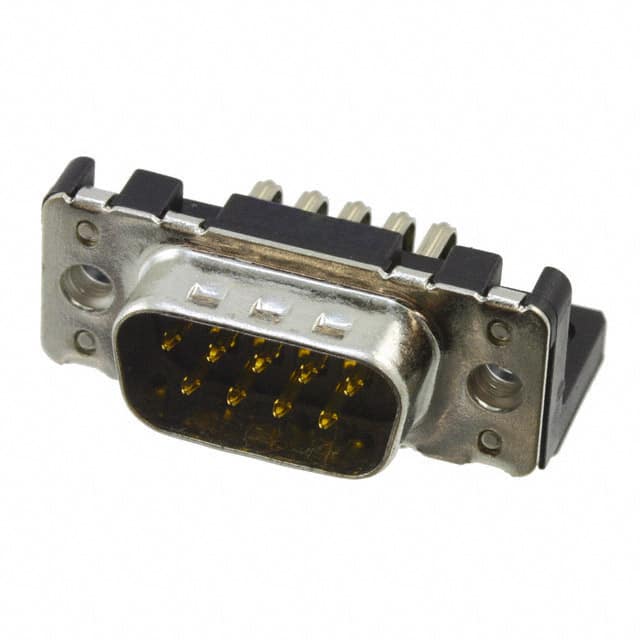

The Harting 09651627811 is a 9-position D-Sub plug connector designed for reliable signal interconnection. It features male pins arranged in 2 rows within a shell size 1 (DE, E) layout. The connector uses a right angle through hole mounting style with solder termination, making it suitable for PCB applications where space is constrained.
Electrical specifications include a current rating of 6.5 A per contact. The connector is built with a steel shell and includes board lock and grounding indent features for secure attachment and improved EMI performance. The flange feature uses a housing/shell (M3) design.
The connector has a backset spacing of 10.40 mm and is rated UL94 V-0 for flammability. This D-Sub plug is a standard choice for data and signal connections in industrial, computing, and telecommunications equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $4.87 | $4.87 |
| 10+ | $4.14 | $4.14 |
| 20+ | $3.88 | $3.88 |
| 50+ | $3.70 | $3.70 |
| 100+ | $3.51 | $3.51 |
| 200+ | $3.25 | $3.25 |
| 500+ | $3.13 | $3.13 |
| 1,000+ | $2.99 | $2.99 |
| 2,000+ | $2.80 | $2.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
This connector has 9 positions.
It is a through hole, right angle mount connector.
The current rating is 6.5 A.
The shell material is steel.
Yes, it features board lock and grounding indents.
