| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
75 pcs
|
75 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Termination | |
| Termination Style |

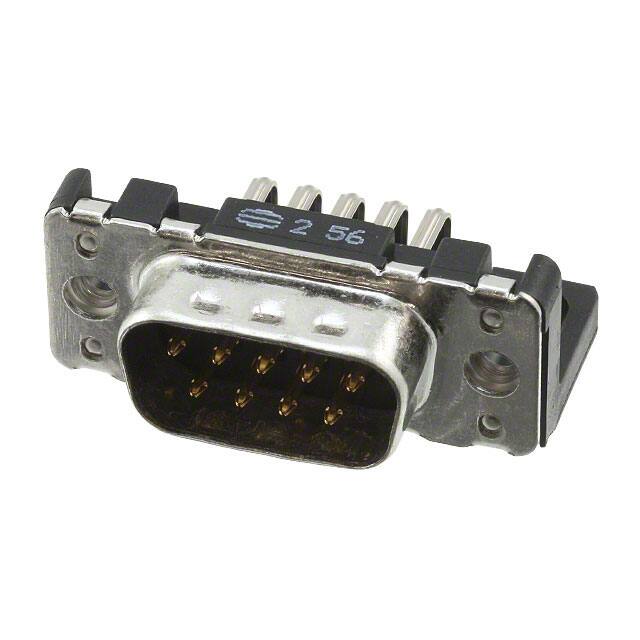

The Harting 09651626812 is a 9-position D-Sub plug connector featuring male pins arranged in 2 rows. It is designed for through-hole, right-angle mounting with solder termination, making it suitable for compact PCB layouts where space is constrained.
This connector uses a steel shell with a DE (E) shell size and includes a housing/shell flange feature with 4-40 threaded inserts for secure mating. The insulator is rated UL94 V-0 for flammability resistance. Additional features include board locks and grounding indents for improved mechanical retention and EMI performance.
With a current rating of 6.5 A per contact, this signal contact connector is appropriate for low to moderate current applications in industrial automation, data communication, and instrumentation equipment.
Plug, Male Pins, D-Sub style.
9 positions arranged in 2 rows.
Through Hole, Right Angle mounting with Solder termination.
6.5 A per contact.
Steel shell.
UL94 V-0.
