| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Material | |
| Contact Pitch | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Insulation Resistance | |
| Lead Pitch | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Package / Case | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Test Voltage |

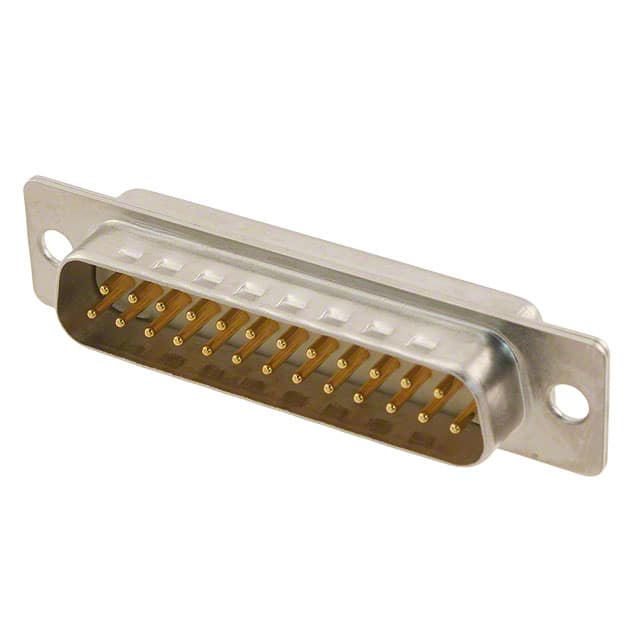

The 09643217210 is a D-Sub plug connector from Harting, featuring 25 male pins arranged in 2 rows with a 2.54 mm contact pitch. The connector uses solder cup termination for easy wire attachment and is designed for free hanging (in-line) mounting. The shell is made of steel with a housing/shell unthreaded flange feature. This connector includes integrated filtering and grounding indents for EMI protection. Electrical specifications include a current rating of 7.5 A, test voltage of 1 kV, contact resistance ≤10 mΩ, and insulation resistance ≥1000 MΩ. The operating temperature range is -55°C to +125°C. The insulator material has a UL94 V-0 flammability rating. The contact material is copper. This connector is suitable for applications requiring signal transmission with filtering in harsh environments.
25 positions.
2.54 mm.
7.5 A per contact.
Free hanging (in-line).
-55°C to +125°C.
Yes, it includes filter and grounding indents.
Steel.
