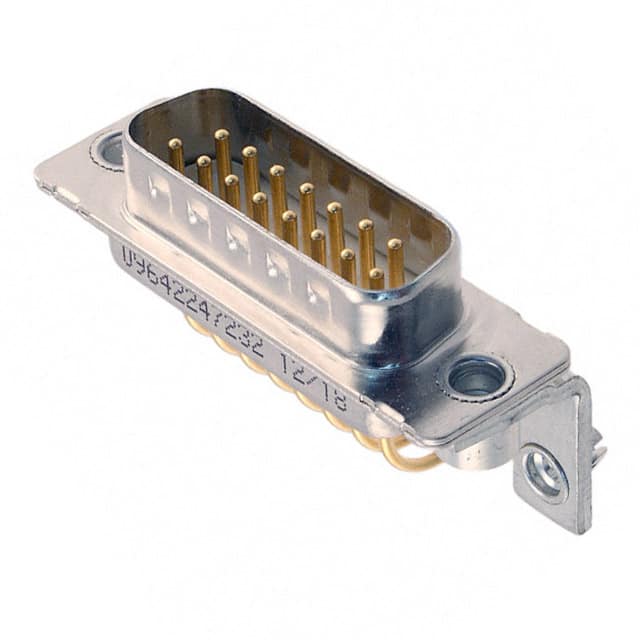

The Harting 09642247232 is a D-Sub connector assembly featuring a plug with 15 male pins arranged in 2 rows. It employs a right-angle through-hole mounting style with solder termination, making it suitable for PCB applications where space is limited. The connector has a shell size of 2 (DA, A) and a steel shell with a housing/shell flange feature (4-40).
The insulator material is rated UL94 V-0 for flammability. The connector is rated for a current of 7.5 A per contact, with signal contacts. Key features include board lock, filter, and grounding indents, which enhance mechanical retention and signal integrity. The shell material is steel, providing durability and EMI shielding.
Typical applications include industrial automation, data communication, and computer peripheral interfaces where reliable D-Sub connections are required. The right-angle design allows for low-profile mounting on the PCB edge.
15 positions.
7.5 A per contact.
Through Hole, Right Angle.
Steel.
UL94 V-0.
Board lock, filter, and grounding indents.
