| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

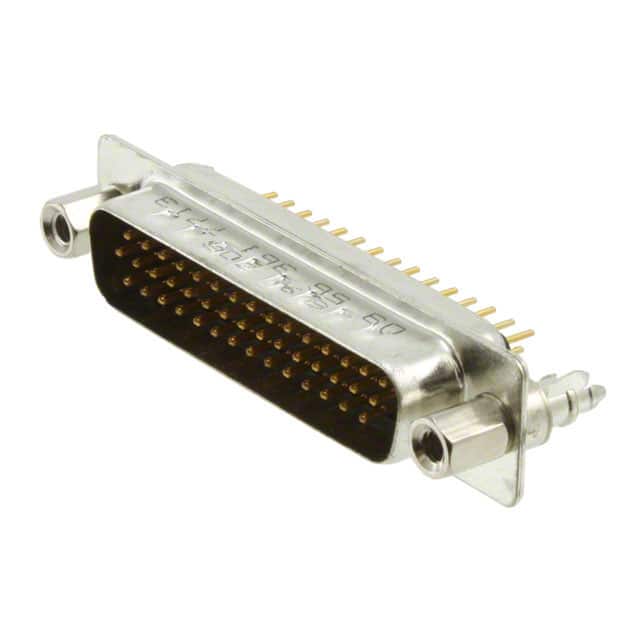

The Harting 09563617713 is a D-Sub high density plug connector featuring 44 male pins arranged in 3 rows. It is designed for through hole mounting with solder termination, providing reliable signal connections in dense interconnect applications.
The connector has a steel shell with nickel plating and includes board locks and grounding indents for secure attachment and EMI protection. The flange features mating side female screwlocks (4-40) for robust mating with a corresponding receptacle.
Rated for 2A per contact, this connector is suitable for signal-level circuits. The insulator is made from UL94 V-0 rated material, ensuring flammability compliance. The shell size is 3 (DB, B) high density layout.
This is a D-Sub high density plug with male pins.
It has 44 positions arranged in 3 rows.
Through hole mounting with solder termination.
2A per contact.
Steel with nickel plating.
Yes, it includes board locks and grounding indents.
UL94 V-0.
