| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Halogen Free | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Termination | |
| Termination Style |

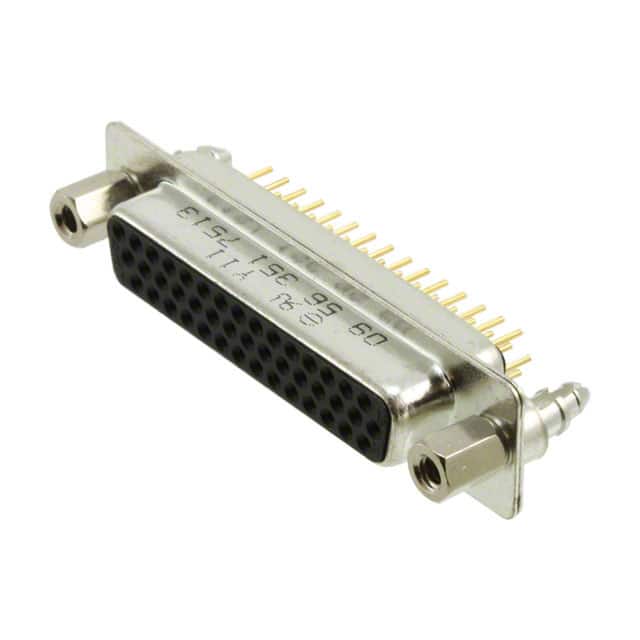

The Harting 09563517513 is a D-Sub high density receptacle designed for reliable signal connections in dense electronic systems. It offers 44 female socket contacts arranged in 3 rows, supporting a current rating of 2A per contact. The connector features a through hole mounting style with solder termination for secure attachment to printed circuit boards.
This receptacle includes a board lock feature for additional mechanical retention and a flange with female screwlocks (4-40) on the mating side for stable panel or cable mounting. The shell is constructed from steel with nickel plating, providing robust mechanical protection. The insulator material is rated UL94 V-0 for flammability resistance, making it suitable for applications requiring safety compliance.
Typical applications include industrial control equipment, data communication devices, and computer peripherals where high density interconnection is needed. The contact type is signal-grade, and the connector is designed for vertical orientation in through-hole layouts.
44 positions.
2 A per contact.
Through hole.
3 rows.
Solder termination.
Steel with nickel plating.
Yes, it has a female screwlock (4-40) on the mating side.
