| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flammability Rating | |
| Flange Feature | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Termination |

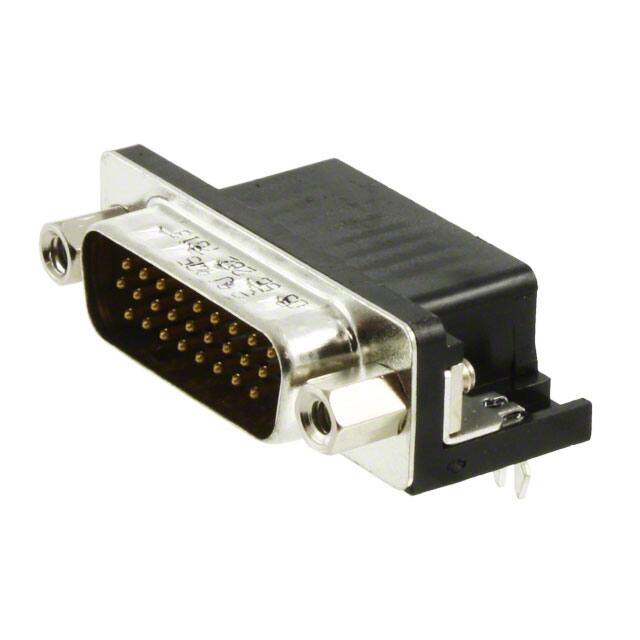

This Harting 09562627813 is a high density D-Sub plug connector with 26 male pins arranged in 3 rows. It features a right angle through hole mounting style with solder termination for secure PCB attachment. The connector shell is made of steel with nickel plating, providing durability and EMI shielding. The flange includes a mating side female screwlock (4-40) for secure connection. The connector layout is shell size 2 (DA, A) high density with a backset spacing of 8.89 mm. It includes board lock and grounding indent features for improved mechanical retention and grounding. The insulator material has a flammability rating of UL94 V-0. With a current rating of 2 A per contact, this connector is suitable for signal applications in industrial and commercial electronic equipment.
The connector has 26 positions arranged in 3 rows.
Through hole, right angle with solder termination.
The current rating is 2 A per contact.
The shell is steel with nickel plating.
Yes, it includes board lock and grounding indent features.
