| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Storage Temperature | |
| Termination | |
| Termination Style |

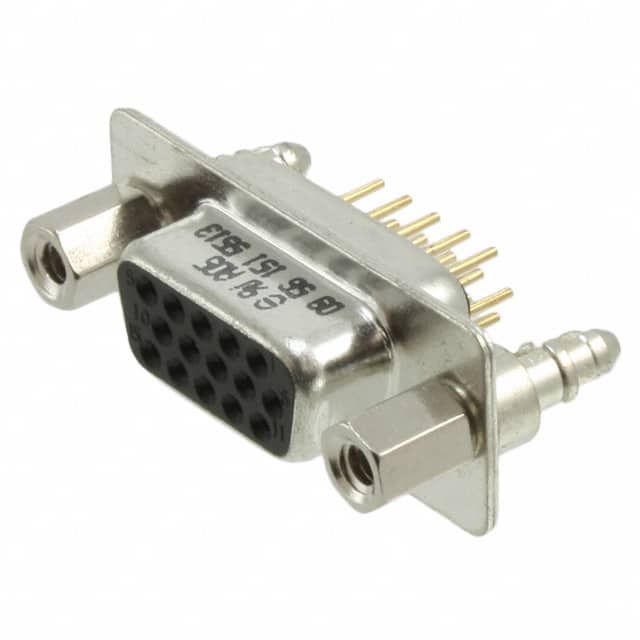

The Harting 09561515513 is a 15-position high-density D-Sub receptacle featuring female sockets arranged in 3 rows. It is designed for through hole mounting with solder termination, ensuring reliable PCB attachment. The contacts are finished with gold or gold-palladium (0.76µm thickness) for low contact resistance and corrosion resistance. The shell is made of steel with nickel plating, providing EMI shielding and durability. This connector is rated for 2A continuous current per contact and meets UL94 V-0 flammability requirements. It includes a board lock feature for secure PCB retention and a mating side female screwlock (4-40) for secure mating. Typical applications include high-density I/O connections in industrial control, data communication, and computer peripheral interfaces.
15 positions
Through hole
2A per contact
Gold or gold-palladium, 0.76µm (30µin)
Steel, nickel plated
UL94 V-0
Yes, board lock feature included
