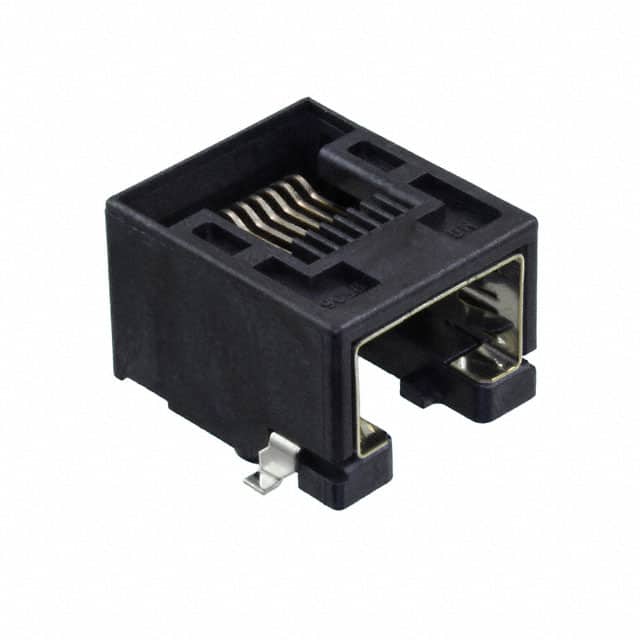

The Molex 0955406886 is a modular jack designed for RJ45 connectors, featuring 8 positions and 8 contacts (8p8c). It has a right-angle (90°) orientation and is shielded for EMI protection. The connector is surface mount compatible, with solder termination and a jack height of 11.50 mm.
Electrical ratings include a maximum current of 1.5 A per contact and a maximum voltage of 125 V DC. It is specified for Category 3 performance, suitable for Ethernet and other low-speed networking applications. The operating temperature range is -40°C to +85°C.
Mechanical features include gold over palladium nickel contact plating for mating, tin plating for termination, and a high temperature thermoplastic resin housing. The connector includes board guide, solder retention, PCB locator, and PCB retention features. It is rated for 2500 mating cycles and has a flammability rating of UL 94V-0.
The component is packaged in embossed tape on reel for automated assembly. It is RoHS3 compliant and low-halogen. Recommended PCB thickness is 1.57 mm.
It has 8 positions and 8 loaded contacts (8p8c).
The mating interface pitch is 1.02 mm, and the termination interface pitch is 1.27 mm.
The maximum current per contact is 1.5 A.
The maximum voltage rating is 125 V DC.
It is surface mount (SMT) with solder termination.
The operating temperature range is -40°C to +85°C.
Yes, it is shielded (internal shield).
