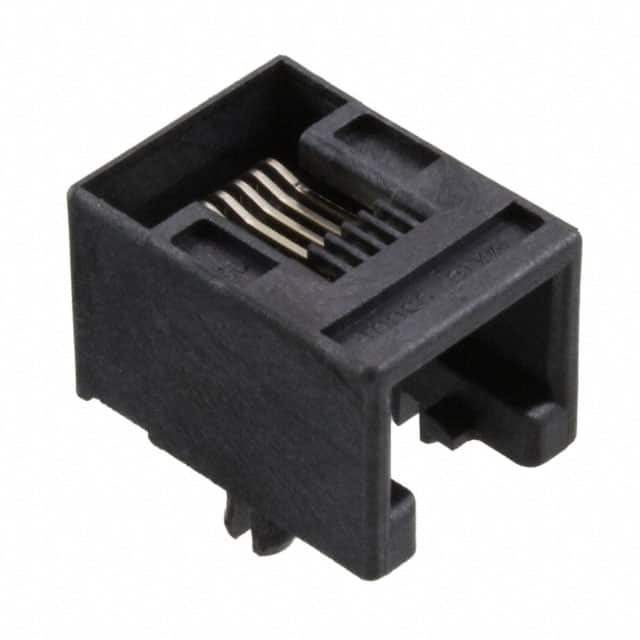

0955012661 Molex 0955012661 is a 6P6C modular jack with right-angle orientation, through hole termination, and unshielded design. It is rated for Cat3 applications and features gold over palladium nickel plating on mating contacts.
Mfr Part #:

0955012661

Available from 2 distributors
Mfr Name: Molex
Molex
Molex 0955012661 is a 6P6C modular jack with right-angle orientation, through hole termination, and unshielded design. It is rated for Cat3 applications and features gold over palladium nickel plating on mating contacts.
✓ Total Stock: 2 pcs

0955012661 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

0955012661 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Connector Type
Contact Finish
Contact Material
Features
Halogen Free
Industrial Grade
LED Color
Lead Spacing
Lead Style
Medical Grade
Military Grade
Mounting Type
Number of Ports
Number of Positions
Number of Rows
Operating Temperature Range
Orientation
Ratings
SVHC Present
Shielding
Storage Temperature
Tab Direction
Termination
View Similar Products (0)

0955012661 Description

Short technical summary and product information.

The Molex 0955012661 is a 6-position, 6-contact (6P6C) modular jack designed for right-angle, through hole mounting. It is part of the 95501 series and is rated for Category 3 performance. The connector features an unshielded body with a low profile jack height of 11.50 mm. It has a single port with one row of contacts and a mating interface pitch of 1.02 mm.



The mating contacts are plated with gold over palladium nickel, and the termination contacts are tin plated. The housing is made of high temperature thermoplastic with a UL 94V-0 flammability rating. The operating temperature range is -40°C to +85°C. Each contact is rated for 1.5 A maximum current and 125 V DC maximum voltage.



This jack includes a board lock feature and is compatible with through hole soldering processes, including wave soldering. It is reflow capable and surface mount compatible (SMC). The component is packaged in tray format and is RoHS3 compliant with low-halogen status.

0955012661 Quick Information

Product Type: Modular Connector Jack
Series: 95501
Canonical Name: Molex 0955012661 Modular Jack, 6P6C, Right-Angle, Through Hole, Unshielded, Cat3, Low Profile, Tray
Subcategory: RJ11/RJ12/RJ14/RJ25 Jack

0955012661 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

0955012661 Features

  • 6P6C right-angle through hole modular jack.
  • Cat3 rated, unshielded with board lock.
  • Gold over palladium nickel mating contacts.
  • Rated for 1.5 A and 125 V DC.
  • Wave solder capable and reflow compatible.

0955012661 Applications

  • Ideal for Cat3 telephone and data lines.
  • Used in networking and telecom equipment.
  • Suitable for low-profile PCB designs.
  • Common in RJ11/RJ12/RJ14/RJ25 applications.

0955012661 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions and contacts for this modular jack?

This jack has 6 positions and 6 contacts (6P6C).

What is the mounting style and orientation of the 0955012661?

It is a through hole mount with right-angle (90°) orientation.

What are the current and voltage ratings for this connector?

The maximum current per contact is 1.5 A, and the maximum voltage is 125 V DC.

What is the operating temperature range?

The operating temperature range is -40°C to +85°C.

What is the pitch for the mating interface?

The mating interface pitch is 1.02 mm.

Is this modular jack shielded?

No, it is unshielded.

What is the flammability rating of the housing?

The housing material is rated UL 94V-0.
