| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Flammability | |
| Industrial Grade | |
| Ingress Protection | |
| LED Color | |
| Lead Style | |
| Mating Cycles | |
| Mounting Type | |
| Number of Ports | |
| Number of Positions | |
| Number of Rows | |
| Orientation | |
| Ratings | |
| SVHC Present | |
| Shielding | |
| Tab Direction | |
| Tape & Reel | |
| Temperature Range | |
| Termination | |
| Termination Style | |
| Transmission Rate |

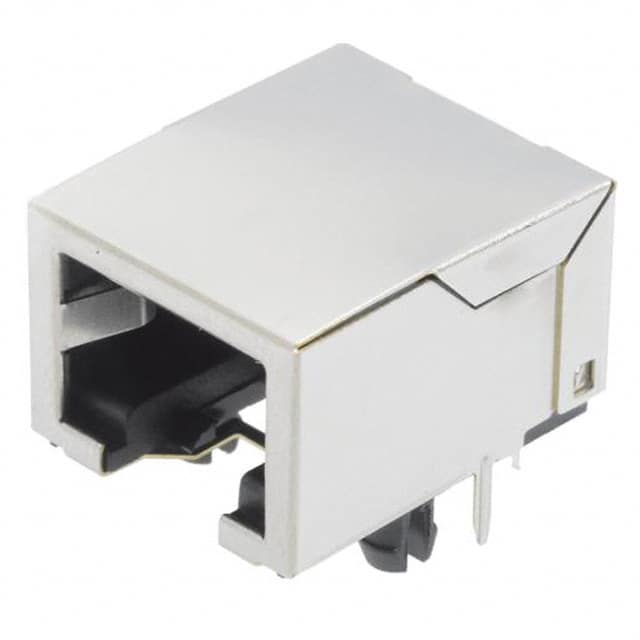

The Harting 09455511102 is a PushPull RJ45 jack from the 09 45 551 series, designed for industrial Ethernet connectivity. It features 8 positions (8p8c) with a right angle orientation and through hole solder termination, making it ideal for space-saving PCB integration. The connector is fully shielded with 360° shielding contact for electromagnetic interference protection.
This jack supports Cat5 transmission rates up to 10/100/1000 Mbit/s and is suitable for PoE (IEEE 802.3af) and PoE+ (IEEE 802.3at) applications. Rated for a minimum of 750 mating cycles, it operates over a temperature range of -40°C to +70°C. The housing is plastic with UL 94 V-0 flammability rating, and the part offers IP65/IP67 protection according to the datasheet.
Packaging is in blister trays of 120 pieces. The connector includes a board lock feature for secure mounting. Contact material is phosphor bronze with gold finish. This component is RoHS3 and REACH compliant (unverified) and has an MSL of 1.
8p8c (RJ45, Ethernet).
Through hole, 90° angle (right).
10/100/1000 Mbit/s (Cat5).
Yes, fully shielded with 360° shielding contact.
-40°C to +70°C.
Minimum 750 cycles.
UL 94 V-0.
