| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| China RoHS | |
| Convert From (Adapter End) | |
| Convert To (Adapter End) | |
| Country of Origin | |
| Data Rate | |
| ELV | |
| Features | |
| Fixing | |
| Flammability Class | |
| Ingress Protection | |
| Material: Housing | |
| Mating Cycles | |
| Mounting Type | |
| Net Weight | |
| Number of Contacts | |
| Operating Temperature Range | |
| Packaging Size | |
| Ratings | |
| SVHC Present | |
| Shell Material, Finish | |
| Shielding | |
| Storage Temperature | |
| Type |

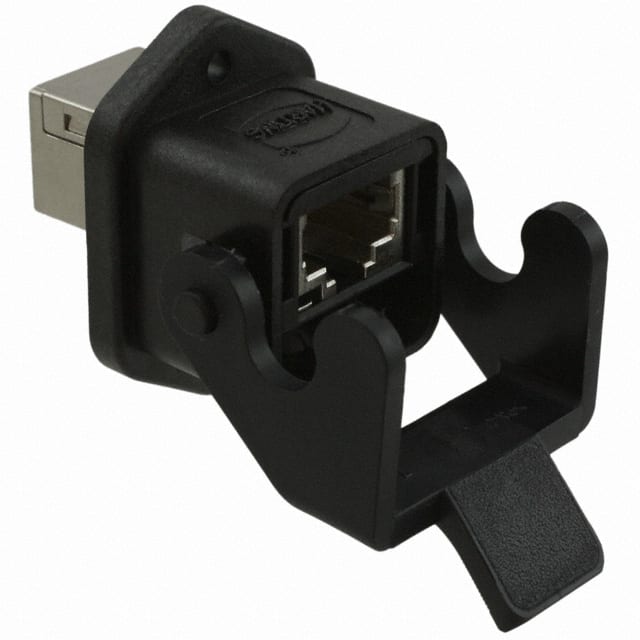

The Harting 09452251560 is a Cat6A RJ45 panel feed-through coupler designed for high-speed industrial Ethernet applications. It features 8 contacts with full 360° shielding for reliable signal integrity up to 10 Gbit/s. The coupler is rated IP65 and IP67, making it suitable for harsh environments where dust and water ingress are concerns.
This coupler is part of the Han3A series and is panel mountable with a 2-hole flange. It is constructed with a polycarbonate housing that meets UL 94 V-0 flammability class. The operating temperature range is -40 to +70 °C, and it is rated for at least 500 mating cycles. It is compatible with all PoE versions, supporting Power over Ethernet applications.
The coupler is RoHS, REACH, and ELV compliant, and it carries UL/CSA and DNV GL approvals. It is suitable for use in industrial networking, automation, and outdoor installations where robust connectivity is required.
The coupler has 8 contacts (8p8c).
Fully shielded with 360° shielding contact.
IP65 and IP67 (dust-tight and waterproof).
Up to 10 Gbit/s.
-40 to +70 °C.
At least 500 mating cycles.
UL 94 V-0.
