| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| California Proposition 65 | |
| China RoHS | |
| Color Code | |
| Connector Type | |
| Country of Origin | |
| ELV | |
| ETIM | |
| Failure Rate | |
| Fire Protection on Railway Vehicles | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Limiting Temperature Range | |
| Lock Location | |
| Locking Material | |
| Locking Type | |
| Net Weight | |
| Operating Temperature | |
| Packaging Size | |
| SVHC Present | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Tightening Torque | |
| Type Rating per UL 50 / UL 50E | |
| UL / CSA Ratings | |
| Weight | |
| Width | |
| eCl@ss |

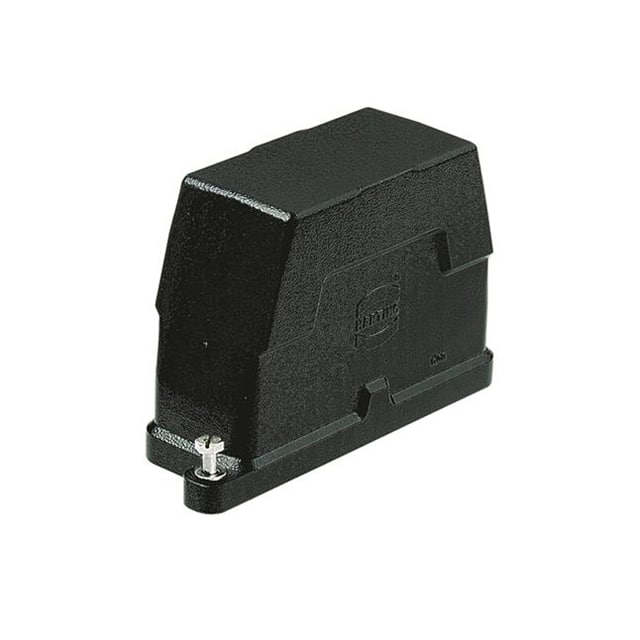

The Harting 09400240811 is a heavy-duty connector hood from the Han® HPR series, designed for harsh outdoor environments. This bottom-entry hood accepts size 24B inserts and features screw locking with a tightening torque of 4 Nm. The housing is made of aluminum die-cast with a powder-coated finish in RAL 9005 (jet black), and the locking mechanism is constructed from stainless steel.
The hood provides ingress protection ratings of IP65, IP68, and IP69K, making it suitable for applications requiring dust-tight, water-resistant, and high-pressure wash-down resistance. It operates over a temperature range of -40°C to +125°C. The product measures 192.00mm in length, 58.00mm in width, and 110.50mm in height, with a net weight of 626.3 g.
Compliance includes RoHS, ELV, China RoHS, and UL/CSA ratings (UL 1977, CSA-C22.2 No. 182.3). It also meets fire protection requirements per EN 45545-2 for railway vehicles. The hood is approved with CE and DNV GL certifications.
IP65, IP68, and IP69K (dust tight, water resistant, waterproof).
-40°C to +125°C.
Aluminum, die cast with powder coated finish, RAL 9005 (jet black).
Screw locking with a tightening torque of 4 Nm. The locking is made of stainless steel.
Size 24 B.
CE, DNV GL, UL 1977 ECBT2.E235076, CSA-C22.2 No. 182.3 ECBT8.E235076. Type rating per UL 50/UL 50E: 4, 4X, 12.
Yes, RoHS compliant. Also ELV compliant, China RoHS e, and REACH Annex XVII/XIV/SVHC substances not contained.
