| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| California Proposition 65 | |
| China RoHS | |
| Color Code | |
| Connector Type | |
| ELV | |
| Features | |
| Fire Protection Railway | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Industrial Grade | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Material | |
| Net Weight | |
| Operating Temperature | |
| Packaging Size | |
| REACH SVHC | |
| SVHC Present | |
| Seal Material | |
| Style | |
| Tightening Torque (Fixing Screws) | |
| Tightening Torque (Mounting Cover) | |
| Tightening Torque (PE Screw) | |
| Tightening Torque (Screw Locking) | |
| UL Type Rating | |
| Width |

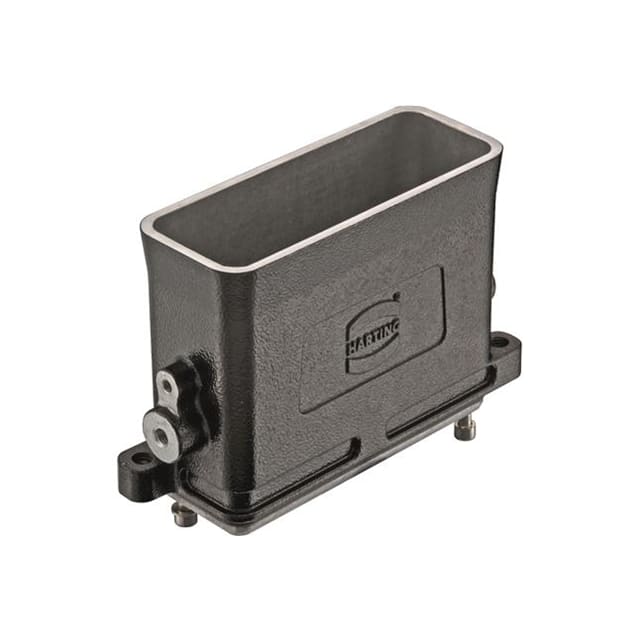

The Harting 09400160951 is a Han 16HPR EasyCon HSM surface mount housing designed for harsh outdoor environments. This size 16B housing features a die-cast aluminum construction with a powder-coated black finish (RAL 9005) and a NBR seal for reliable environmental protection.
Key specifications include an ingress protection rating of IP65, IP68, and IP69K, making it suitable for dust-tight, water-resistant, and high-pressure washdown applications. The operating temperature range is -40°C to 125°C. Screw locking with stainless steel hardware ensures secure mating, with specified tightening torques of 4 Nm for screw locking, 6 Nm for the mounting cover, 15 Nm for the PE screw, and 6 Nm for fixing screws.
This housing is part of the Han HPR EasyCon series, designed for harsh outdoor environments. It is UL rated Type 4, 4X, and 12, and meets EN 45545-2 fire protection requirements for railway applications. The housing is RoHS compliant with exemption and contains lead as an alloying element in steel.
IP65, IP68, and IP69K (dust tight, water resistant, waterproof).
-40°C to 125°C.
Die-cast aluminum with a powder-coated black finish (RAL 9005).
Screw locking with stainless steel hardware.
Screw locking: 4 Nm; mounting cover: 6 Nm; PE screw: 15 Nm; fixing screws: 6 Nm.
UL Type 4, 4X, and 12 according to UL 50 / UL 50E.
Yes, RoHS compliant with exemption 6(a)/6(a)-I for lead as an alloying element in steel.
