| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approvals | |
| California Proposition 65 | |
| China RoHS | |
| Connector Type | |
| ELV | |
| ELV Compliant | |
| Failure Rate | |
| Fire Protection | |
| Height | |
| Housing Color | |
| Housing Finish | |
| Housing Material | |
| Ingress Protection | |
| Length | |
| Lock Location | |
| Locking Type | |
| Net Weight | |
| Operating Temperature | |
| REACH SVHC | |
| SVHC Present | |
| Seal Material | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| UL Type Rating | |
| Width |

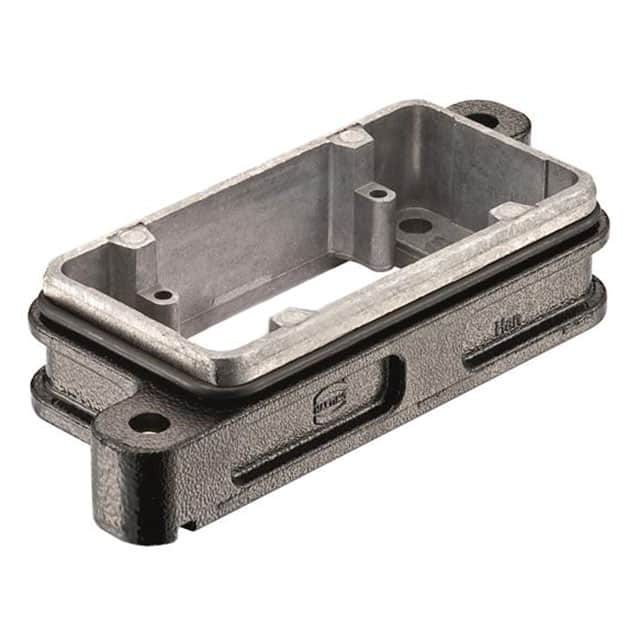

The Harting 09400100301 is a Han® HPR series bulkhead mounted housing designed for heavy-duty connectors in harsh outdoor environments. It offers ingress protection ratings of IP65 and IP68 per IEC 60529, and holds UL Type Ratings 4, 4X, and 12 per UL 50/50E, ensuring resistance to dust, water, and corrosion. The housing is constructed from corrosion-resistant aluminum die-cast with a powder-coated finish in RAL 9005 (jet black). The seal is made of NBR.
This size 10B housing features toggle locking and bottom entry style. It is rated for operating temperatures from -40°C to +125°C (for use as a connector per IEC 61984). The housing also meets fire protection requirements for railway vehicles per EN 45545-2 (2020-08) with hazard levels HL 1-3 for R1 and R7.
The part is RoHS compliant, ELV compliant, REACH compliant (Annex XVII/XIV/SVHC substances not contained), and China RoHS compliant (e symbol). It contains naphthalene (California Proposition 65). Approvals include UL 1977, CSA C22.2 No. 182.3, CE, and DNV GL.
The housing is rated IP65 and IP68 per IEC 60529, providing dust-tight, water-resistant, and waterproof protection.
-40°C to +125°C when used as a connector per IEC 61984.
UL 1977, CSA C22.2 No. 182.3, CE, and DNV GL.
Corrosion-resistant aluminum die-cast with a powder-coated finish in RAL 9005 (jet black). The seal is NBR.
Size 10B with toggle locking.
