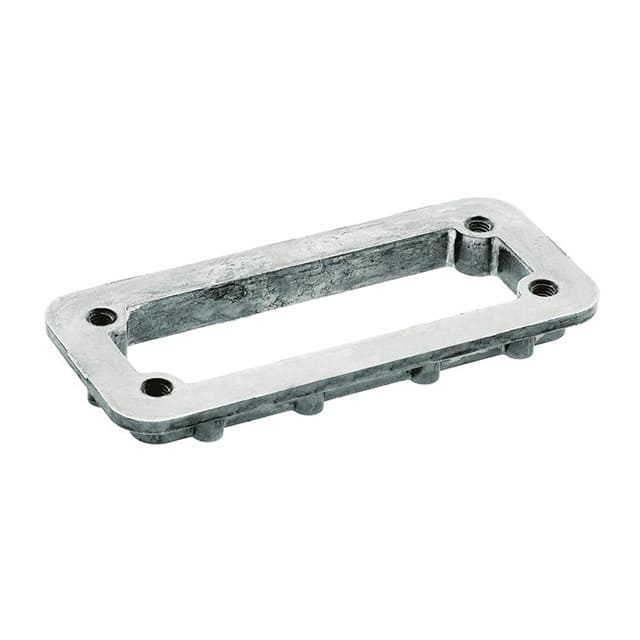

09400009902 Harting Han 10 HPR Panel Mounting Frame, size 10B, aluminium die-cast, M6 thread.
Mfr Part #:

09400009902

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han 10 HPR Panel Mounting Frame, size 10B, aluminium die-cast, M6 thread.
✓ Total Stock: 5 pcs

09400009902 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09400009902 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Country of Origin
Frame Type
Gender
Includes
Material
Mounting Type
Operating Temperature
SVHC Present
Thread
View Similar Products (0)

09400009902 Description

Short technical summary and product information.

The Harting 09400009902 is a Han 10 HPR Panel Mounting Frame designed for heavy-duty connector applications. This size 10B frame is constructed from aluminium die-cast material, providing robust mechanical support for connector modules in demanding industrial environments.



The frame features an M6 thread and is non-gendered, making it suitable for panel mounting. It is RoHS, REACH, and ELV compliant, and contains California Proposition 65 substances. The part is manufactured in Germany and has a net weight of 0.591 g.

09400009902 Quick Information

Product Type: Heavy Duty Connector Frame
Series: Han 10 HPR
Canonical Name: Han 10 HPR Mounting Frame
Subcategory: Heavy Duty Connector Frames

09400009902 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected (no SVHC, Annex XIV, Annex XVII)
Lead Free: Yes

09400009902 Features

  • Aluminium die-cast panel mounting frame.
  • Size 10B for heavy-duty connectors.
  • M6 thread for secure mounting.
  • RoHS and REACH compliant.
  • Operating temperature -40°C to 125°C.

09400009902 Applications

  • Panel mounting of heavy-duty connector modules.
  • Industrial automation and control systems.
  • Railway and transportation applications.

09400009902 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the size of this mounting frame?

Size 10B.

What material is the frame made of?

Aluminium die-cast.

What thread does the frame use?

M6 thread.

Is this product RoHS compliant?

Yes, RoHS compliant.

What is the operating temperature range?

-40°C to 125°C.

What is the net weight?

0.591 g.

What is the country of origin?

Germany.
