09365242702

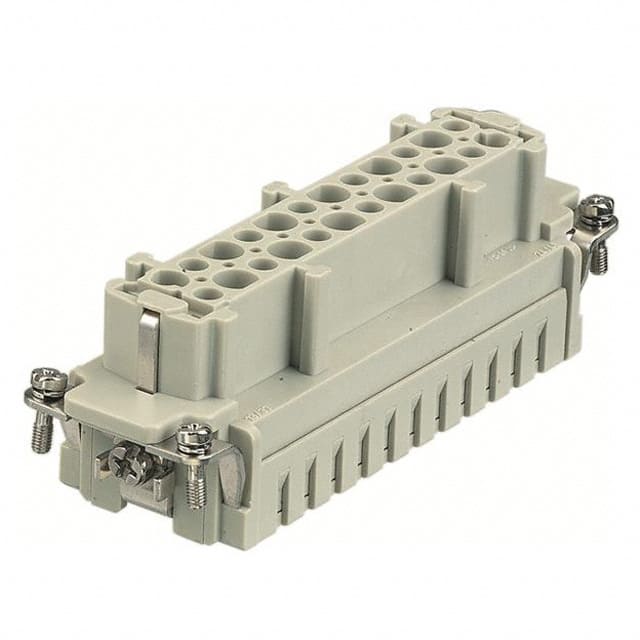

The Harting 09365242702 is a Han 24Ex UL-F-c female crimp insert designed for heavy-duty connector applications. This insert accommodates 24 contacts plus a PE contact, with a conductor cross-section range of 0.14 to 4 mm². It is rated for 16A current and 90V voltage, with an insulation resistance greater than 10^10 Ω. The insert is made of polycarbonate (PC) with a pebble grey color (RAL 7032) and meets UL 94 V-0 flammability requirements. It supports at least 500 mating cycles and operates in temperatures from -20°C to 40°C. Termination is via crimp contacts, which must be ordered separately. The insert is intended for use with Han® Ex hoods and housings. Compliance includes RoHS, REACH, ELV, and China RoHS e. The net weight is 80g and it is manufactured in Germany. This insert is part of the Han® Ex series, designed for use in hazardous area applications where safety is critical. The 24B size ensures compatibility with standard Han hoods and housings. The polycarbonate insert provides good insulation and mechanical strength. The crimp termination allows for reliable wire connections. The insert is supplied without contacts, allowing users to select appropriate crimp contacts for their specific wire gauges.
