| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Country of Origin | |
| Current Rating (Amps) | |
| Failure Rate | |
| Gender | |
| Insulation Resistance | |
| Mating Cycles | |
| Number of Contacts | |
| Number of Positions | |
| Operating Temperature | |
| Rated Current | |
| Rated Voltage | |
| SVHC Present | |
| Termination Style | |
| Voltage Rating | |
| Weight |

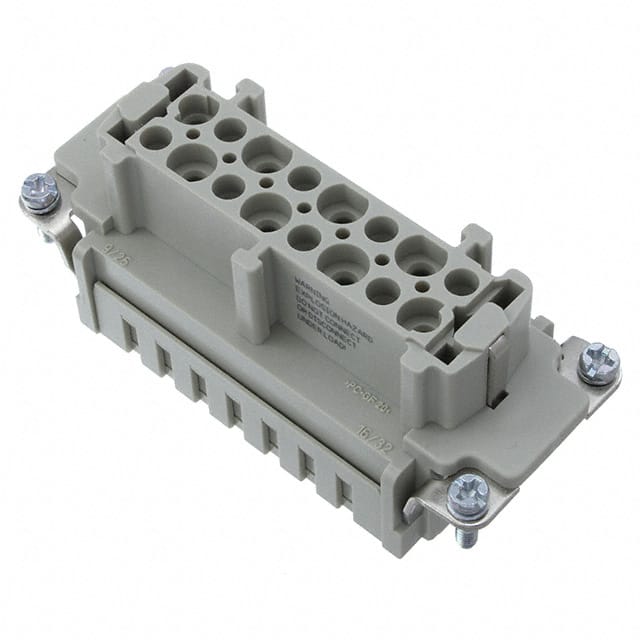

The Harting 09365162702 is a Han 16Ex-UL-F-C female crimp insert from the Han® Ex series. It features 16 contacts with a PE ground contact and is designed for crimp termination. The insert is rated for 16A current and 90V voltage, with an insulation resistance greater than 10^10 Ω. It accepts conductor cross-sections from 0.14 to 4 mm².
The insert is made of polycarbonate (PC) in RAL 7032 pebble grey and meets UL 94 V-0 flammability class. It is rated for at least 500 mating cycles and operates in temperatures from -20°C to +40°C. The part is RoHS and REACH compliant, and contains lead and nickel as per California Proposition 65.
This insert is intended for use only with Han® Ex hoods and housings. Crimp contacts must be ordered separately. The net weight is 0.063 kg and it is packaged individually.
16 contacts plus a PE ground contact.
Rated current 16 A, rated voltage 90 V.
Conductor cross-section 0.14 to 4 mm².
-20°C to +40°C.
Polycarbonate (PC) in RAL 7032 pebble grey.
Yes, RoHS compliant.
UL 94 V-0.
