| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Type | |
| Country of Origin | |
| Current Rating | |
| Current Rating (Amps) | |
| Failure Rate | |
| Gender | |
| Industrial Grade | |
| Insulation Resistance | |
| Mating Cycles | |
| Number of Positions | |
| Operating Temperature | |
| Package Quantity | |
| Rated Voltage | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Voltage Rating |

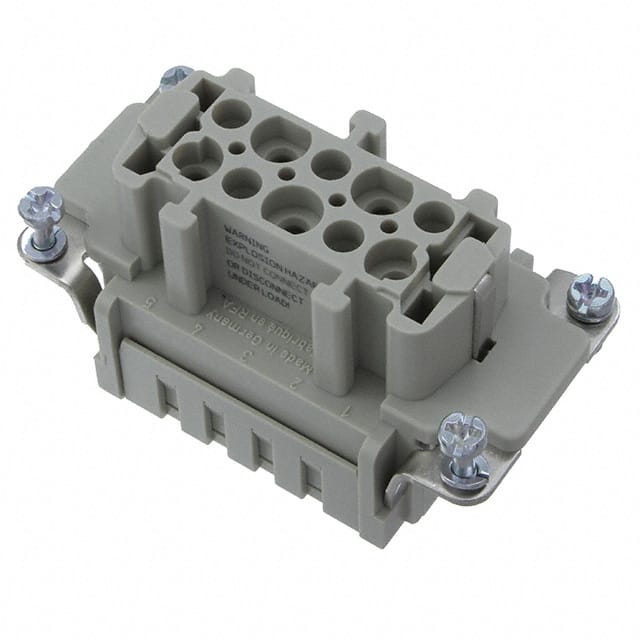

This is a Han® Ex series female insert from Harting, designed for heavy-duty connector applications. It has 10+Ground positions (11 total) and uses crimp termination for reliable wire connections. The insert is rated for 16A at 90V and has an insulation resistance greater than 10¹⁰ Ω.
The insert is made of polycarbonate (PC) with UL 94 V-0 flammability rating, color RAL 7032 (pebble grey). It supports conductor cross-sections from 0.14 to 4 mm² and is rated for at least 500 mating cycles. Operating temperature range is -20°C to 40°C.
This insert is intended for use with Han® Ex hoods and housings only. It is supplied without contacts; crimp contacts must be ordered separately. The insert is UL and CSA approved (file numbers CYJX2.E482115 and CYJX8.E482115). It is RoHS, REACH, and ELV compliant, and contains lead and nickel as per California Proposition 65.
The net weight is 0.05 kg, country of origin Germany. Packaging size is 1 piece. This insert is suitable for industrial applications requiring robust and reliable connections in harsh environments.
10+Ground (11 total positions).
16 A.
90 V.
>10¹⁰ Ω.
-20°C to 40°C.
Polycarbonate (PC) with UL 94 V-0 flammability.
Yes, RoHS compliant.
