09365062702 Harting 09365062702 is a Han 6Ex UL-F-c female crimp insert designed for heavy-duty connector applications. It features 6+Ground contacts, 16A rated current, and 90V rated voltage.
Mfr Part #:

09365062702

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09365062702 is a Han 6Ex UL-F-c female crimp insert designed for heavy-duty connector applications. It features 6+Ground contacts, 16A rated current, and 90V rated voltage.
✓ Total Stock: 3 pcs

09365062702 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09365062702 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Type
Country of Origin
Current Rating (Amps)
Gender
Insulation Resistance
Lead Spacing
Lead Style
Mating Cycles
Number of Contacts
Number of Positions
Operating Temperature
Rated Current
Rated Voltage
SVHC Present
Storage Temperature
Termination Method
Termination Style
Voltage Rating
View Similar Products (0)

09365062702 Description

Short technical summary and product information.

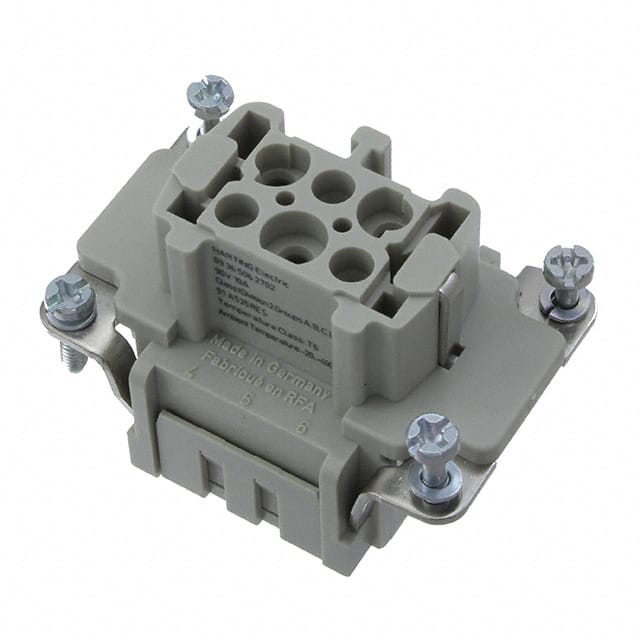

The Harting 09365062702 is a Han 6Ex UL-F-c female crimp insert part of the Han Ex series for heavy-duty connectors. This insert has 6+Ground contacts (6 signal plus one ground) arranged in size 6B. It uses crimp termination for secure wire connections to conductor cross-sections from 0.14 to 4 mm². The insert is rated for 16A current and 90V voltage with insulation resistance greater than 10¹⁰ Ω. It is made of polycarbonate (PC) insert material in RAL 7032 pebble grey color with UL 94 V-0 flammability rating. The operating temperature range is -20°C to +40°C and it supports at least 500 mating cycles. This insert requires separate ordering of crimp contacts and must be used only with Han Ex hoods and housings. Compliance includes RoHS, REACH, ELV, China RoHS, and California Proposition 65 (contains lead and nickel).

09365062702 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han 6Ex UL-F-c
Canonical Name: Harting Han 6Ex UL-F-c Female Crimp Insert (6+Ground)
Subcategory: Heavy Duty Connector Inserts

09365062702 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH SVHC substances not contained

09365062702 Features

  • 6+Ground contacts for reliable connections.
  • Rated 16A current and 90V voltage.
  • Crimp termination for secure wiring.
  • UL 94 V-0 flammability rated.
  • 500 mating cycles durability.

09365062702 Applications

  • Ideal for Han Ex heavy-duty applications.
  • Used in industrial control panels.
  • Suitable for harsh environment connectors.
  • Common in automation and machinery.

09365062702 FAQs

7 frequently asked questions generated from this part’s specifications.
How many contacts does the 09365062702 have?

The insert has 6+Ground contacts (6 signal contacts plus one ground contact).

What is the current rating of the 09365062702?

The rated current is 16 A.

What is the voltage rating of the 09365062702?

The rated voltage is 90 V.

What termination method does the 09365062702 use?

It uses crimp termination.

What is the operating temperature range?

The operating temperature is -20°C to +40°C.

What material is the insert made of?

The insert material is polycarbonate (PC) with color RAL 7032 (pebble grey) and flammability class UL 94 V-0.

Is the 09365062702 RoHS compliant?

Yes, it is RoHS compliant.
