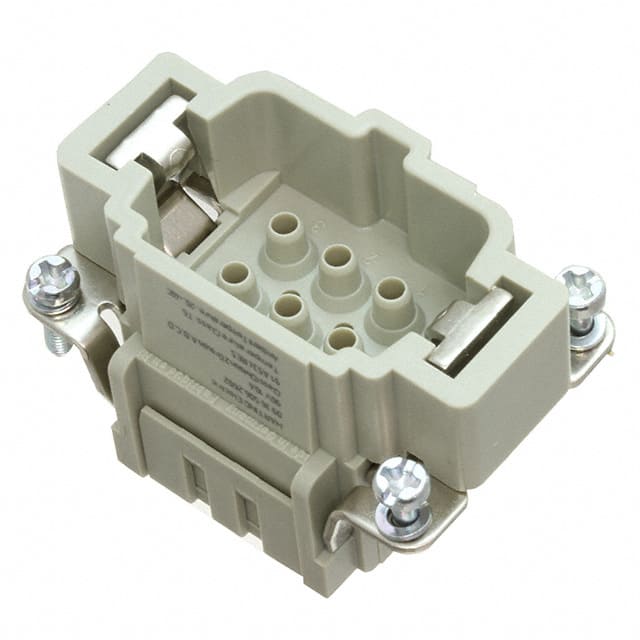

09365062602 Harting Han® E 6B male crimp insert without contacts. Rated 16A at 90V with 6+Ground positions and crimp termination.
Mfr Part #:

09365062602

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han® E 6B male crimp insert without contacts. Rated 16A at 90V with 6+Ground positions and crimp termination.
✓ Total Stock: 3 pcs

09365062602 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09365062602 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Type
Current Rating
Current Rating (Amps)
Gender
Lead Spacing
Lead Style
Number of Positions
Operating Temperature
SVHC Present
Storage Temperature
Termination Style
Voltage Rating
View Similar Products (0)

09365062602 Description

Short technical summary and product information.

The Harting 09365062602 is a Han® E series heavy duty connector insert designed for industrial applications requiring reliable power and signal transmission. This male insert features 6+Ground positions and is rated for 16A at 90V, making it suitable for moderate power distribution in harsh environments.



The insert uses crimp termination for secure wire connections and is housed in a size 6B form factor. It operates over a temperature range of -20°C to 40°C. The part is supplied without contacts, allowing users to select appropriate Han® E crimp contacts for their specific wire gauges.



This insert is part of Harting's Han® modular system, enabling flexible configuration for various industrial connector applications. It is claimed to be RoHS3 compliant and REACH unaffected, though these compliance claims are unverified.

09365062602 Quick Information

Product Type: Heavy Duty Connector Insert
Series: 6B
Canonical Name: Harting Han® E 6B Male Crimp Insert without Contacts, 6+Ground Positions, 16A 90V
Subcategory: Insert without Contacts

09365062602 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

09365062602 Features

  • Rated for 16A at 90V operation.
  • 6+Ground positions for power and signal.
  • Crimp termination for secure connections.
  • Size 6B form factor for modular systems.
  • Operating range -20°C to 40°C.

09365062602 Applications

  • Used in industrial control cabinets.
  • Suitable for machine tool connections.
  • Ideal for power distribution modules.
  • Applied in factory automation systems.

09365062602 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 09365062602?

The current rating is 16A.

What is the voltage rating of this insert?

The voltage rating is 90V.

How many positions does this insert have?

It has 6+Ground positions.

What termination style does this insert use?

It uses crimp termination.

What is the operating temperature range?

The operating temperature range is -20°C to 40°C.

Is this insert male or female?

This is a male insert.

What connector series is this part from?

This is from the Han® E series.
