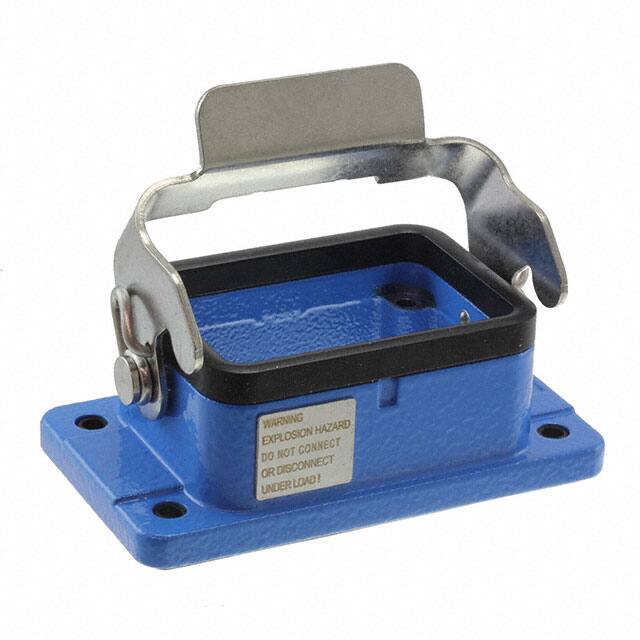

09365061301 Harting Han 6Ex UL-HBM-SL bulkhead mounted housing, size 6B, with single locking lever, IP65 protection, and zinc die-cast housing in RAL 5015 blue.
Mfr Part #:

09365061301

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han 6Ex UL-HBM-SL bulkhead mounted housing, size 6B, with single locking lever, IP65 protection, and zinc die-cast housing in RAL 5015 blue.
✓ Total Stock: 10 pcs

09365061301 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09365061301 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Country of Origin
Height
Housing Color
Housing Finish
Housing Material
Ingress Protection
Length
Lock Location
Operating Temperature
SVHC Present
Style
Width
View Similar Products (0)

09365061301 Description

Short technical summary and product information.

The Harting 09365061301 is a Han 6Ex UL-HBM-SL bulkhead mounted housing designed for use with Han® Ex inserts in explosion hazardous environments. It features a size 6B form factor with a single locking lever made of stainless steel for secure mating.



The housing is constructed from zinc die-cast with a powder-coated finish in RAL 5015 (sky blue). The seal is made of NBR, and the assembly achieves IP65 protection when used with a cable gland. The operating ambient temperature range is -20°C to +40°C, with capability up to +70°C in T4 conditions.



This housing is RoHS, ELV, and China RoHS compliant. It does not contain REACH SVHC, Annex XVII, or Annex XIV substances. California Proposition 65 substances (lead, nickel, naphthalene) are present. The net weight is 202 g, and packaging is 1 piece per unit.

09365061301 Quick Information

Product Type: Heavy Duty Connector Housing
Series: Han 6Ex
Canonical Name: Han 6Ex UL-HBM-SL Bulkhead Mounted Housing
Subcategory: Hoods/Housings

09365061301 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

09365061301 Features

  • Bulkhead mounted housing for Han® Ex inserts.
  • Size 6B with single locking lever.
  • IP65 protection with cable gland.
  • Zinc die-cast housing, powder-coated RAL 5015.
  • Stainless steel locking lever.

09365061301 Applications

  • Used in explosion hazardous environments.
  • Suitable for industrial connector applications.
  • Pairs with Han® Ex inserts.

09365061301 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the size of this housing?

Size 6B.

What is the ingress protection rating?

IP65 with cable gland.

What material is the housing made of?

Zinc die-cast with powder-coated finish in RAL 5015 (sky blue).

What is the operating temperature range?

-20°C to +40°C ambient, up to +70°C in T4.

Is this housing RoHS compliant?

Yes, RoHS compliant.

What locking mechanism does it use?

Single locking lever made of stainless steel.

What is the net weight?

202 g.
