Mfr Part #:

0936012949

Name: 0936012949
Brand: Molex
SKU: 0936012949

Mfr Name: Molex

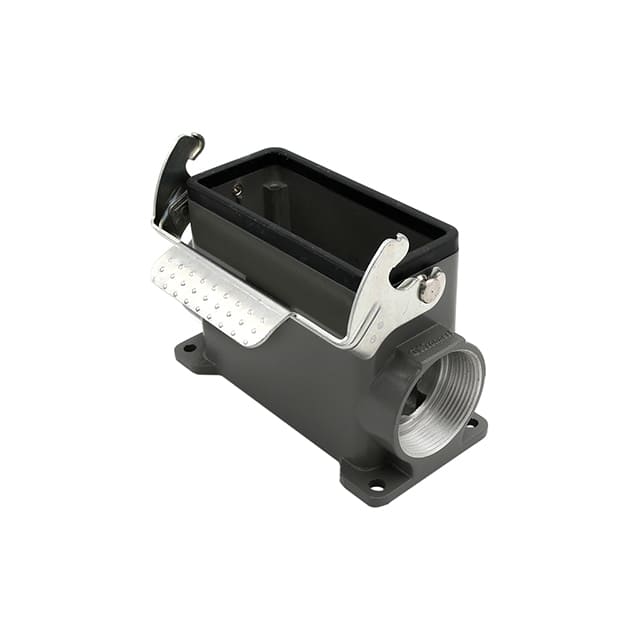

CONN BASE SIDE ENTRY SZ16B PG29

Stock on Request

0936012949 Description

Short technical summary and product information.

CONN BASE SIDE ENTRY SZ16B PG29

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

0936013016

Molex

CONN BASE W/CVR SIDE SZ16B PG29

0936013014

Molex

CONN BASE W/CVR SIDE SZ16B PG29

0936012951

Molex

CONN BASE SIDE ENTRY SZ16B PG29

Category	Heavy Duty Connector Housings, Hoods, Bases
Manufacturer Name	Molex
Connector Type	Base - Box Mount
Housing Finish	Powder Coated
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP66 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature	-40°C ~ 125°C
Size	4.606" L x 2.244" W x 3.031" H (117.00mm x 57.00mm x 77.00mm)
Style	Side Entry
Thread Size	PG29
