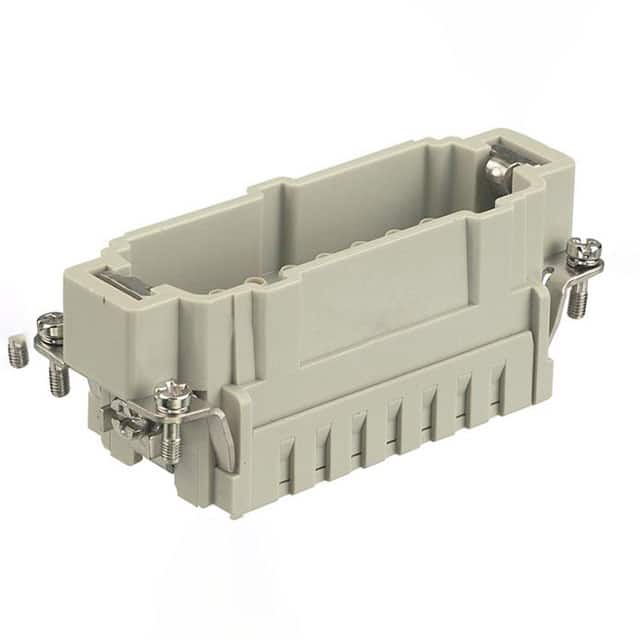

09340062602 Harting Han Hv E® male insert with 8 contacts (6 power + 2 relay + ground), crimp termination, rated 16A and 830V. Suitable for heavy-duty industrial connectors.
Mfr Part #:

09340062602

Available from 1 distributors
Mfr Name: Harting
Harting
Harting Han Hv E® male insert with 8 contacts (6 power + 2 relay + ground), crimp termination, rated 16A and 830V. Suitable for heavy-duty industrial connectors.
✓ Total Stock: 2 pcs

09340062602 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
2 pcs
On Request
2 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09340062602 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Type
Country of Origin
Current Rating (Amps)
Failure Rate
Gender
Industrial Grade
Insulation Resistance
Mating Cycles
Number of Contacts
Number of Positions
Operating Temperature
Prop 65
Rated Current
Rated Voltage
SVHC Present
Termination Method
Termination Style
Voltage Rating
View Similar Products (0)

09340062602 Description

Short technical summary and product information.

The Harting 09340062602 is a male insert from the Han Hv E® series, designed for heavy-duty industrial connector applications. It features 8 contacts (6 power contacts and 2 special relay contacts) plus a PE (ground) contact, with a crimp termination method. The insert is rated for 16 A current and 830 V voltage (UL/CSA rated 600 V), with an impulse voltage of 8 kV and pollution degree 3. It accepts conductor cross-sections from 0.5 to 4 mm² (AWG 20 to 12).



The insert is made of polycarbonate (PC) in RAL 7032 (pebble grey) and has a flammability class of UL 94 V-0. It operates over a temperature range of -40°C to +125°C and is rated for at least 500 mating cycles. The net weight is 58 g. Please note that crimp contacts are not included and must be ordered separately.



This insert complies with RoHS, REACH (no SVHC, Annex XIV or XVII), ELV, China RoHS (e), and California Proposition 65 (contains lead and nickel). It also meets railway fire protection standard EN 45545-2 (2020-08) R22 and R23 for HL 1-3. The product is manufactured in Germany.

09340062602 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han Hv E®
Canonical Name: Han 6HvE-M-c Insert Male 6+2+Ground Contacts Crimp Termination
Subcategory: Heavy Duty Connector Inserts

09340062602 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Not containing SVHC, Annex XIV or Annex XVII substances
Lead Free: No

09340062602 Features

  • Male insert with 6 power and 2 relay contacts plus ground.
  • Crimp termination for wire sizes 0.5-4 mm².
  • Rated current 16 A and voltage 830 V.
  • Operating temperature range -40°C to +125°C.
  • Flammability rating UL 94 V-0.

09340062602 Applications

  • Used in heavy-duty industrial connector systems.
  • Suitable for high-voltage power transmission applications.
  • Ideal for railway equipment requiring fire protection.
  • Common in automation and control cabinets.

09340062602 FAQs

7 frequently asked questions generated from this part’s specifications.
How many contacts does the Harting 09340062602 insert have?

It has 8 contacts: 6 power contacts, 2 special relay contacts, plus a PE (ground) contact.

What is the current rating of the 09340062602 insert?

The rated current is 16 A.

What is the voltage rating of this insert?

The rated voltage is 830 V (UL/CSA rated 600 V).

What termination method does the 09340062602 use?

It uses crimp termination.

What is the gender of the insert?

The insert is male.

What is the operating temperature range?

The operating temperature range is -40°C to +125°C.

What size is the 09340062602 insert?

The insert size is 16B.
