09338162604 Harting 09338162604 is a Han E heavy duty connector insert with 16+Ground male contacts, rated 16A and 500V, using crimp termination. Operates from -40°C to 200°C.
Mfr Part #:

09338162604

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09338162604 is a Han E heavy duty connector insert with 16+Ground male contacts, rated 16A and 500V, using crimp termination. Operates from -40°C to 200°C.
✓ Total Stock: 1 pcs

09338162604 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09338162604 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Type
Current Rating
Current Rating (Amps)
Gender
Lead Style
Number of Positions
Operating Temperature
Termination Style
Voltage Rating
View Similar Products (0)

09338162604 Description

Short technical summary and product information.

The Harting 09338162604 is a heavy duty connector insert from the Han E series, designed for reliable power and signal connections in demanding environments. This insert accommodates 16+Ground male contacts (contacts not included) using crimp termination, providing a secure and field-replaceable connection.



With a current rating of 16A and a voltage rating of 500V, it is suitable for moderate power applications. The insert is rated for operation from -40°C to 200°C, making it ideal for high-temperature industrial settings such as foundries or engine compartments.



The 16B size housing ensures compatibility with standard Han heavy duty hoods and housings. The male gender insert is typically used in the base or cable side of the connector system.

09338162604 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han E

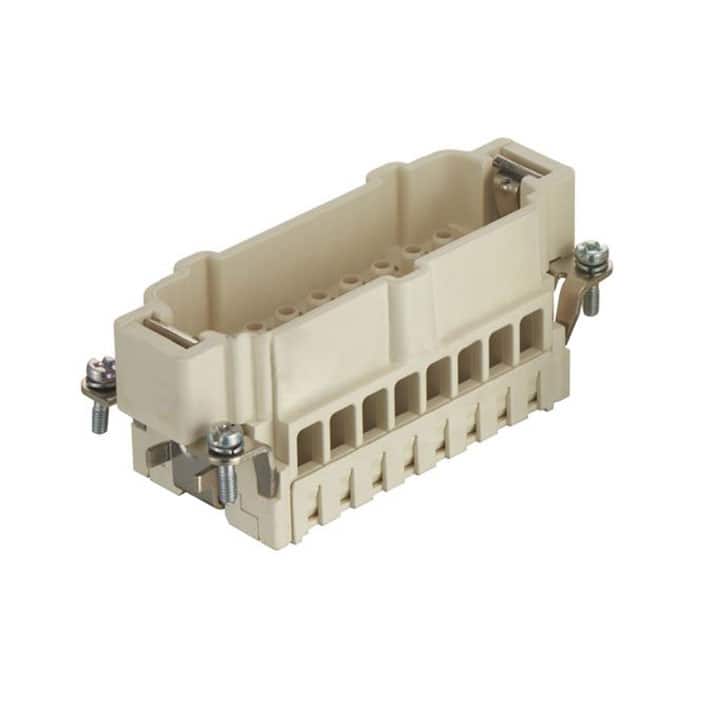

Canonical Name: Harting Han E Heavy Duty Connector Insert, 16B Size, 16+Ground Male, Crimp
Subcategory: Crimp Type Insert

09338162604 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

09338162604 Features

  • 16+Ground male contact positions.
  • Rated 16A and 500V.
  • Crimp termination for field wiring.
  • Wide temperature range -40°C to 200°C.
  • Han E series heavy duty insert.

09338162604 Applications

  • Industrial machinery power and control.
  • Railway and automotive high-temperature environments.
  • Offshore and renewable energy systems.
  • Factory automation and robotics connections.

09338162604 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does this insert have?

The insert has 16+Ground positions (16 power contacts plus 1 ground contact).

What is the current rating of this Harting insert?

It is rated for 16A per contact.

What is the voltage rating?

The voltage rating is 500V.

What termination style does this insert use?

It uses crimp termination; contacts must be ordered separately.

What is the operating temperature range?

It operates from -40°C to 200°C.

Is this insert male or female?

This is a male insert.
