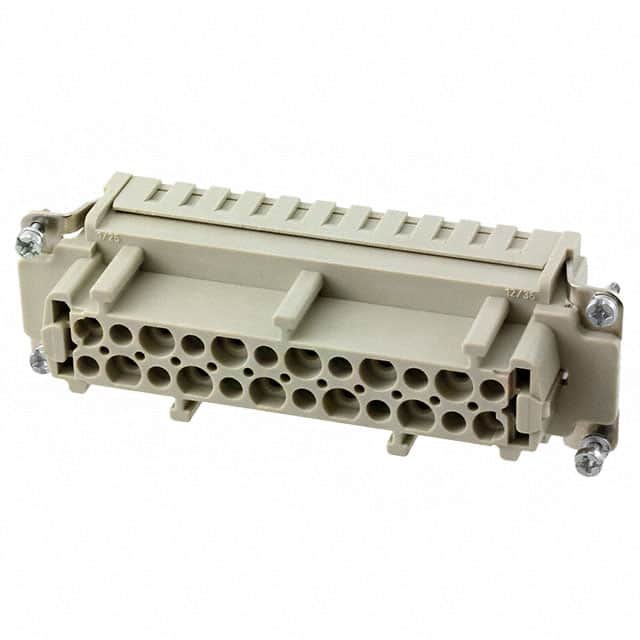

09332242702 Harting 09332242702 is a Han E HMC heavy duty connector insert with 24+Ground female contacts, rated 16A and 500V, with crimp termination.
Mfr Part #:

09332242702

Available from 1 distributors
Mfr Name: Harting
Harting
Harting 09332242702 is a Han E HMC heavy duty connector insert with 24+Ground female contacts, rated 16A and 500V, with crimp termination.
✓ Total Stock: 10 pcs

09332242702 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
10 pcs
On Request
10 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

09332242702 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Type
Current Rating
Current Rating (Amps)
Gender
Number of Positions
Operating Temperature
Storage Temperature
Tape & Reel
Termination Style
Voltage Rating
View Similar Products (0)

09332242702 Description

Short technical summary and product information.

The Harting 09332242702 is a heavy duty connector insert from the Han E HMC series. It features 24+Ground female contact positions and uses crimp termination. The insert is rated for 16A per contact and 500V, with an operating temperature range of -40°C to 125°C. This insert is designed for use in industrial environments requiring reliable power and signal connections. It is a size 24B insert and is supplied without contacts, allowing selection of appropriate crimp contacts for specific wire gauges.

09332242702 Quick Information

Product Type: Heavy Duty Connector Insert
Series: Han HMC
Canonical Name: Harting Han E HMC 24+Ground Female Crimp Insert
Subcategory: Heavy Duty Connector Insert

09332242702 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

09332242702 Features

  • 24+Ground female contact positions.
  • Rated for 16A and 500V.
  • Crimp termination for secure connections.
  • Operating temperature range -40°C to 125°C.
  • Part of Han E HMC series.

09332242702 Applications

  • Used in heavy duty industrial connectors.
  • Suitable for power and signal transmission.
  • Ideal for harsh environment applications.

09332242702 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Harting 09332242702 insert have?

24+Ground positions.

What is the current rating of this insert?

16 A.

What is the voltage rating of this insert?

500 V.

What is the gender of this insert?

Female.

What is the size of this insert?

24B.

What termination style does it use?

Crimp.

What is the operating temperature range?

-40°C to 125°C.
